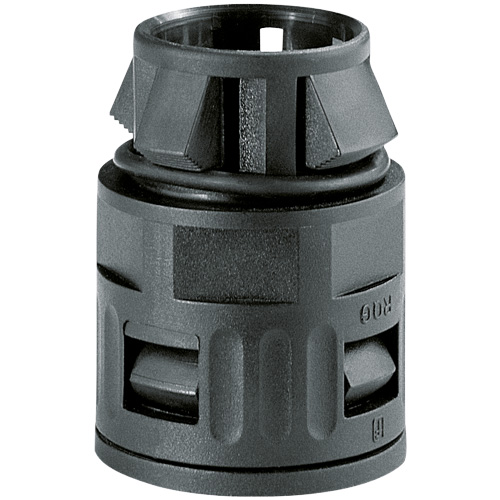

5020.082.209 / 15020082209 RQG1-S 15.0 mm knockout threadless “push-lock” FLEXAquick black straight connector for 13.0 mm OD conduit
The Flexa RQG1-S 15020082209 (Old Part Number 5020.082.209) is a straight Black plastic conduit connector with a unique “push-lock” threadless installation. Use with 15.0 mm knockout holes.
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP66 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!
Use the RQG1-S fitting with ROHRflex® corrugated plastic conduits of matching outside diameter (OD). IBIS supplies more than 20 ROHRflex® corrugated nylon conduit options in PA6, PA12, and multi-layer constructions to support a wide range of routing and protection requirements.
62 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$5.57 | US$5.57 |
| 5 | US$5.40 | US$27.01 |
| 10 | US$5.29 | US$52.92 |
| 15 | US$5.01 | US$75.20 |
| 25 | US$4.73 | US$118.36 |
| 50 | US$4.46 | US$222.80 |
| 100 | US$4.18 | US$417.75 |
| 250 | US$3.90 | US$974.75 |
| 500+ | US$3.62 | US$1,810.25+ |
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG1-S |
| Part Number | 15020082209 |
| Part Number (Old) | 5020.082.209 |
| Colour | Black |
| Thread Length C (mm) | 13.6 |
| Body Length D (mm) | 38.6 |
| Material | PA 6 Plastic |
| OD Outside Diameter (mm) | 13 |
| ΦI Inside Diameter (mm) | 10 |
| ΦB Max Outer Diameter (mm) | 20 |
| Weight (kg|100) | 0.6 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Knockout Hole Size (mm) | 15 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113184412 |
Data Sheet
Properties
- installs in confined locations
- no locknut needed and easily installs from one side of a panel
- good for panel wall thicknesses ranging from 1.0 to 2.5 mm
- self-extinguishing
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
