Flexa RQGZ-P 5020.034.014 / 15020034014

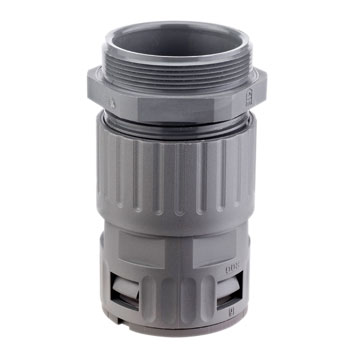

The Flexa RQGZ-P 15020034014 (Old Part Number 5020.034.014) is described as a straight plastic conduit connector with PG 13.5 outer thread and integrated cable strain relief. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$16.95 | US$16.95 |
| 5 | US$16.10 | US$80.51 |
| 10 | US$15.26 | US$152.55 |
| 15 | US$14.41 | US$216.11 |
| 20 | US$13.56 | US$271.20 |
| 40 | US$12.71 | US$508.50 |
| 100 | US$11.87 | US$1,186.50 |
| 250+ | US$11.02 | US$2,754.38+ |
Unit Cost : US$
Extended Cost : US$16.95
Specifications
| Package Size | 20 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ-P |
| Part Number | 15020034014 |
| Part Number (Old) | 5020.034.014 |
| Colour | Grey |
| Thread Type | PG |
| Thread Size | 13.5 |
| Thread Length C (mm) | 9 |
| Body Length D (mm) | 59 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 18.5 |
| ΦI Inside Diameter (mm) | 12 |
| ΦB Max Outer Diameter (mm) | 27 |
| Weight (kg|100) | 1.6 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 6.0-12.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113184351 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
