Flexa RQGZ-M 5020.031.023 / 15020031023

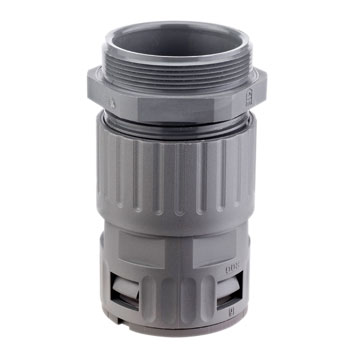

The Flexa RQGZ-M 15020031023 (Old Part Number 5020.031.023) is described as a straight plastic conduit connector with metric M20 x 1.5 outer thread and integrated cable strain relief. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$16.94 | US$16.94 |
| 5 | US$16.09 | US$80.47 |
| 10 | US$15.25 | US$152.46 |
| 15 | US$14.40 | US$215.99 |
| 20 | US$13.55 | US$271.04 |
| 40 | US$12.71 | US$508.20 |
| 100 | US$11.86 | US$1,185.80 |
| 250+ | US$11.01 | US$2,752.75+ |
Unit Cost : US$
Extended Cost : US$16.94
Specifications
| Package Size | 20 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ-M |
| Part Number | 15020031023 |
| Part Number (Old) | 5020.031.023 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M20 x 1.5 |
| Thread Length C (mm) | 8 |
| Body Length D (mm) | 59 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 18.5 |
| ΦI Inside Diameter (mm) | 12 |
| ΦB Max Outer Diameter (mm) | 27 |
| Weight (kg|100) | 1.7 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 8.0-11.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113280701 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
