5020.038.221 / 15020038221 RQG-N 3/4” NPT FLEXAquick® black straight connector for 28.5 mm OD conduit, IP68 sealing

  • 5020.038.221 / 15020038221 RQG-N 3/4'' NPT FLEXAquick® black straight connector for 28.5 mm OD conduit, IP68 sealing

Product Name:
5020.038.221 / 15020038221 RQG-N 3/4” NPT FLEXAquick® black straight connector for 28.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020038221 Categories , , ,

The Flexaquick RQG-N 15020038221 (Old Part Number 5020.038.221) is a straight Black plastic conduit connector with 3/4″ NPT outer thread.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick connect on” fitting assembly or “Quick disconnect off” fitting disassembly. NO tools required!

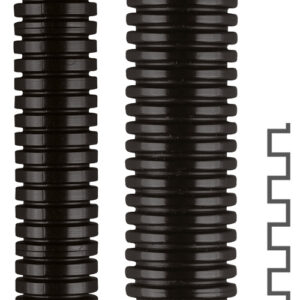

Use the RQG-N 3/4” NPT straight fitting with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.



In Stock: 349
Stock: 349 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

349 in stock

Quantity Unit Price Ext. Price
1 US$10.55 US$10.55
5 US$10.23 US$51.17
10 US$10.02 US$100.23
15 US$9.50 US$142.43
20 US$8.97 US$179.35
25 US$8.44 US$211.00
50 US$7.91 US$395.63
100 US$7.39 US$738.50
250+ US$6.86 US$1,714.38+
Unit Cost : US$
Extended Cost : US$10.55
Add to Quote

Specifications

Package Size

25 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQG-N
Part Number

15020038221
Part Number (Old)

5020.038.221
Colour

Black
Thread Type

NPT
Thread Size

3/4"
Thread Length C (mm)

14
Body Length D (mm)

47.5
Material

PA6 Plastic
OD Outside Diameter (mm)

28.5
ΦI Inside Diameter (mm)

20.7
ΦB Max Outer Diameter (mm)

37
Weight (kg|100)

1.7
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113148520

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
