5128.028.232 / 15128028232 Flexa RQG-Duo-M metric M32 x 1.5 mm hinged straight conduit fitting for 28.5 mm OD conduit

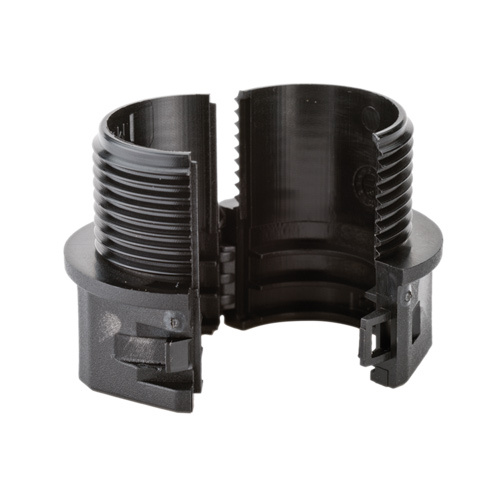

The Flexa RQG-Duo-M 15128028232 (Old Part Number 5128.028.232) is a metric M32 x 1.5 mm hinged, openable, straight conduit fitting for 28.5 mm OD conduit, made of black nylon plastic.
It can be used independently or paired with the same thread size GMK-Duo-M hinged metric thread plastic locknut.
Perfect for repair and retrofit installations with preinstalled wire harnesses or conduit connections. Combine the RQG-Duo-M fitting with the GMK-Duo-M hinged metric thread plastic locknut, and choose between the ROHRflex-Duo-PA6 or ROHRflex-Duo-PP two-piece split conduits for a complete new solution.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | CAD$28.34 | CAD$28.34 |
| 5 | CAD$22.67 | CAD$113.36 |
| 10 | CAD$22.11 | CAD$221.05 |
| 25 | CAD$21.26 | CAD$531.38 |
| 50 | CAD$19.84 | CAD$991.90 |
| 100+ | CAD$18.42 | CAD$1,842.10+ |
Unit Cost : CAD$
Extended Cost : CAD$28.34
Specifications
| Package Size | 5 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG-Duo-M |
| Part Number | 15128028232 |
| Part Number (Old) | 5128.028.232 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M32 x 1.5 |
| Thread Length C (mm) | 15 |
| Body Length D (mm) | 35 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28.5 |
| ΦI Inside Diameter (mm) | 27 |
| ΦB Max Outer Diameter (mm) | 40 |
| Weight (kg|100) | 1.2 |
| IP Rating | IP 50 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113284693 |
Data Sheet
Properties
- to protect pre-assembled cables for retrospective installation or repairs
- simple assembly / disassembly
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
Certifications
