5100.015.220 / 15100015220 RQB45-M M20 x 1.5 mm Metric FLEXAquick® Black 45 degree elbow connector for 15.8 mm OD conduit, IP68

  • 5100.015.220 / 15100015220 RQB45-M M20 x 1.5 mm Metric FLEXAquick® Black 45 degree elbow connector for 15.8 mm OD conduit, IP68

Product Name:
5100.015.220 / 15100015220 RQB45-M M20 x 1.5 mm Metric FLEXAquick® Black 45 degree elbow connector for 15.8 mm OD conduit, IP68

Flexa Logo
Mfr. Part # 15100015220 Categories , , ,

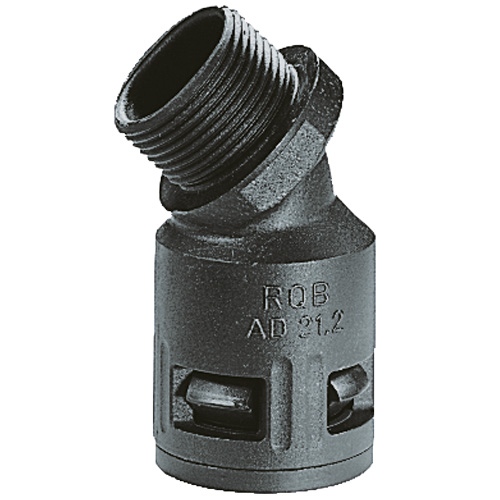

The Flexaquick® RQB45-M 15100015220 (Old Part Number 5100.015.220) is a Black plastic 45° elbow conduit connector with metric M20 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

The RQB45-M connects seamlessly to all fine- or coarse-corrugated plastic conduits of matching outside diameter (OD). Choose from over 20 ROHRflex® corrugated conduit families—from durable PA6 and PA12 to advanced multi-layer PA12 designs.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$10.26 US$10.26
5 US$9.95 US$49.76
10 US$9.75 US$97.47
15 US$9.23 US$138.51
25 US$8.72 US$218.03
50 US$8.21 US$410.40
100 US$7.70 US$769.50
250 US$7.18 US$1,795.50
500+ US$6.67 US$3,334.50+
Unit Cost : US$
Extended Cost : US$10.26
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQB45-M
Part Number

15100015220
Part Number (Old)

5100.015.220
Colour

Black
Thread Type

Metric
Thread Size

M20 x 1.5
Thread Length C (mm)

12
Body Length E (mm)

44.5
Body Length F (mm)

52.5
Material

PA6 Plastic
OD Outside Diameter (mm)

15.8
ΦI Inside Diameter (mm)

10
ΦB Max Outer Diameter (mm)

25.5
Weight (kg|100)

1.3
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113191496

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
