Mfr. Part #
15020714020
Categories IBIS FLEXA USK & LKI Fitting 10 Pack, LKI-M, Plastic Body Fittings, Plastic Straight for AIRflex Conduits

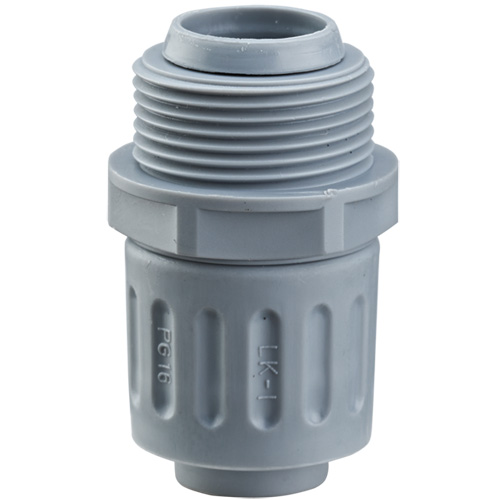

The Flexa LKI-M 15020714020 (Old Part Number 5020.714.020) is described as a plastic connector, straight, one-part, metric M20 x 1.5 outer thread, turnable.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
10 | US$10.20 | US$102.00 |
20 | US$9.95 | US$198.90 |
30 | US$9.56 | US$286.88 |
40 | US$9.56 | US$382.50 |
Unit Cost : US$
Extended Cost : US$12.75
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | LKI-M |
Part Number | 15020714020 |
Part Number (Old) | 5020.714.020 |
Colour | Grey |
Thread Type | Metric |
Thread Size | M20 x 1.5 |
Thread Length C (mm) | 10 |
Body Length D (mm) | 42 |
Material | PP |
OD Outside Diameter (mm) | 17 |
ΦI Inside Diameter (mm) | 11.5 |
ΦB Max Outer Diameter (mm) | 24.5 |
Weight (kg|100) | 0.6 |
Package Size | 10 pcs |
IP Rating | IP 54 |
Low Temperature Rating (°C) | -10 |
High Temperature Rating (°C) | 110 |
Data Sheet
Properties
- rational conduit fitting
- one-part connector body
- conduit screw-out-locking
- covering of the conduit ends
- vibration proof and tension proof
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
