5020.014.063 / 15020014063 LKI-M M63 x 1.5 mm Flexa grey plastic swivelling body straight conduit connector for 56.0 mm OD AIRflex® conduits

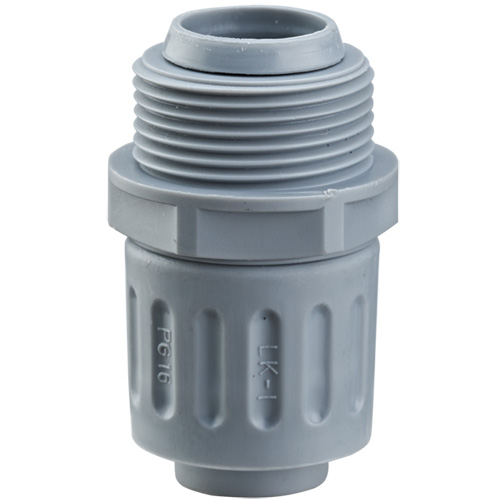

The Flexa LKI-M 15020014063 (Old Part Number 5020.014.063) is a Grey plastic straight conduit connector with swivelling metric M63 x 1.5 mm thread.
The unique design allows the fitting body and conduit to swivel or rotate independently after it is mounted; thereby eliminating the effects of twist, tension and vibration caused by the application.
The easy twist-to-install style conduit fitting comes with an internal TPE rubber sealing ring and built-in plastic ferrule.
Best used in installations with plenty of motion, twisting, and sideways movement of machinery or robotic equipment.
Use with the following AIRflex® conduits:
- AIRflex-KUW-PVC-AS, AIRflex-KUW-PU-AS, AIRflex-K, AIRflex-GRS (All IP54 sealing)
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | US$46.04 | US$460.40 |
| 20 | US$44.89 | US$897.78 |
| 30 | US$43.16 | US$1,294.88 |
| 40 | US$43.16 | US$1,726.50 |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | LKI-M |
| Part Number | 15020014063 |
| Part Number (Old) | 5020.014.063 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M63 x 1.5 |
| Thread Length C (mm) | 15 |
| Body Length D (mm) | 68 |
| Material | PP |
| OD Outside Diameter (mm) | 56 |
| ΦI Inside Diameter (mm) | 46 |
| ΦB Max Outer Diameter (mm) | 71.5 |
| Weight (kg|100) | 5.9 |
| IP Rating | IP 54 |
| Low Temperature Rating (°C) | -10 |
| High Temperature Rating (°C) | 110 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113146908 |
Data Sheet
Properties
- rational conduit fitting
- one-part connector body
- conduit screw-out-locking
- covering of the conduit ends
- vibration proof and tension proof
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
