Flexa RQGK-P 5020.074.229 / 15020074229 PG29 straight metal thread connector for 34.5 mm OD conduit

Product Name:
Flexa RQGK-P 5020.074.229 / 15020074229 PG29 straight metal thread connector for 34.5 mm OD conduit

Flexa Logo
Mfr. Part # 15020074229 Categories , , ,

The FLEXAquick® RQGK-P 15020074229 (Old Part Number 5020.074.229) is a straight Black plastic conduit connector with PG 29 nickel-plated brass thread.

Included with the fitting are both a Nitrile O-ring (OR-P) and a green Centellen flat sealing washer (FRH-P) for IP68/69K thread sealing.

The RQGK-P features the FLEXAquick® quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for “Quick-connect on” assembly, or “Quick-disconnect off” disassembly. NO tools required!

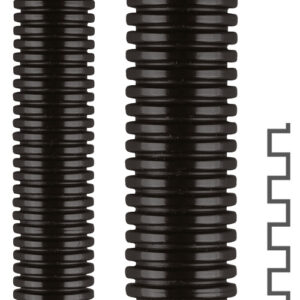

Use the RQGK-P with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon conduits.





In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$34.12 US$34.12
5 US$33.10 US$165.48
10 US$32.41 US$324.14
15 US$30.71 US$460.62
20 US$29.00 US$580.04
25 US$27.30 US$682.40
50 US$25.59 US$1,279.50
100 US$23.88 US$2,388.40
250+ US$22.18 US$5,544.50+
Unit Cost : US$
Extended Cost : US$34.12
Add to Quote

Specifications

Package Size

25 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQGK-P
Part Number

15020074229
Part Number (Old)

5020.074.229
Colour

Black
Thread Type

PG
Thread Size

29
Thread Length C (mm)

14. 0
Body Length D (mm)

59. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

34. 5
ΦI Inside Diameter (mm)

27. 5
ΦB Max Outer Diameter (mm)

48. 0
Weight (kg|100)

7.2
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113177681

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
