Mfr. Part #
15020074216
Categories IBIS FLEXAquick Fitting 25 Pack, Metal Thread Straight, Plastic Body Fittings, RQGK-P

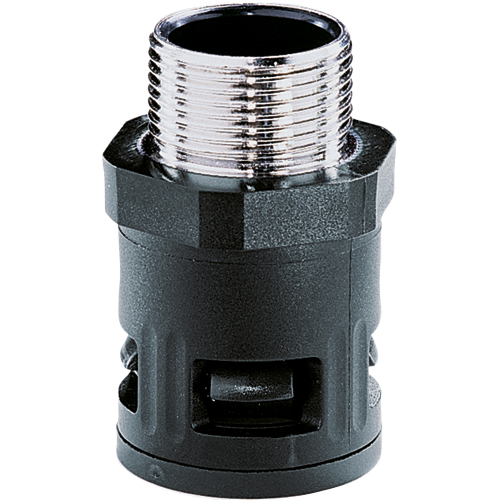

The Flexa RQGK-P 15020074216 (Old Part Number 5020.074.216) is described as a straight plastic conduit connector with PG 16 nickel-plated brass thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. It comes with both an O-ring (OR) and a flat sealing washer (FRH), EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$21.76 | US$21.76 |
5 | US$21.11 | US$105.54 |
10 | US$20.67 | US$206.72 |
15 | US$19.58 | US$293.76 |
20 | US$18.50 | US$369.92 |
25 | US$17.41 | US$435.20 |
50 | US$16.32 | US$816.00 |
100+ | US$15.23 | US$1,523.20+ |
Unit Cost : US$
Extended Cost : US$21.76
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQGK-P |
Part Number | 15020074216 |
Part Number (Old) | 5020.074.216 |
Colour | Black |
Thread Type | PG |
Thread Size | 16 |
Thread Length C (mm) | 13. 0 |
Body Length D (mm) | 51. 0 |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 21. 2 |
ΦI Inside Diameter (mm) | 16. 0 |
ΦB Max Outer Diameter (mm) | 33. 0 |
Weight (kg|100) | 2.7 |
Package Size | 25 pcs |
IP Rating | IP 68 | IP 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
