Mfr. Part #
15020019214
Categories IBIS FLEXAquick Fitting 25 Pack, Metal Thread 90 Elbow, Plastic Body Fittings, RQBK90DR-N

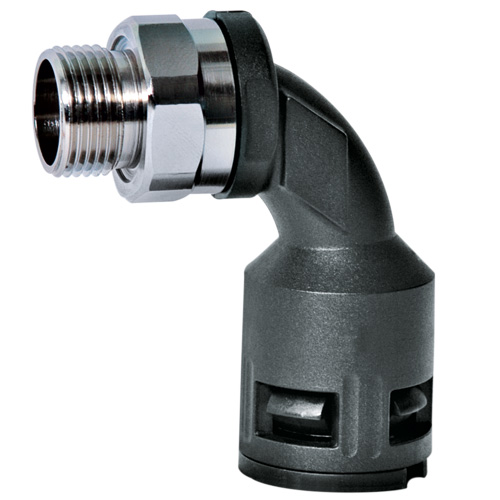

The Flexa RQBK90DR-N 15020019214 (Old Part Number 5020.019.214) is a Black plastic 90° bend elbow conduit connector with swivelling 3/4″ NPT metal thread.
Highlights:
- thread length = 14.0 mm
- turnable, swivelling nickel-plated brass outer thread, swivels both post & pre-installation
- smooth bore gentle 90° bend elbow
- includes sealing rings: one each of “OR type” O-ring and “FRH type” flat sealing ring
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$54.81 | US$54.81 |
5 | US$53.17 | US$265.83 |
10 | US$52.07 | US$520.70 |
15 | US$49.33 | US$739.94 |
20 | US$46.59 | US$931.77 |
25 | US$43.85 | US$1,096.20 |
50 | US$41.11 | US$2,055.38 |
100+ | US$38.37 | US$3,836.70+ |
Unit Cost : US$
Extended Cost : US$54.81
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQBK90DR-N |
Part Number | 15020019214 |
Part Number (Old) | 5020.019.214 |
Colour | Black |
Thread Type | NPT |
Thread Size | 3/4" |
Thread Length C (mm) | 14. 0 |
Body Length E (mm) | 81. 5 |
Body Length F (mm) | 90. 0 |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 28. 5 |
ΦI Inside Diameter (mm) | 17. 0 |
ΦB Max Outer Diameter (mm) | 37. 0 |
Weight (kg|100) | 12 |
Package Size | 25 pcs |
IP Rating | IP 68 | IP 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
- swiveling also after installation
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
