5020.019.206 / 15020019206 RQBK90DR-N 1/2″ NPT swivel thread FLEXAquick 90 degree bend elbow connector for 21.2 mm OD conduit

Product Name:
5020.019.206 / 15020019206 RQBK90DR-N 1/2″ NPT swivel thread FLEXAquick 90 degree bend elbow connector for 21.2 mm OD conduit

Flexa Logo
Mfr. Part # 15020019206 Categories , , ,

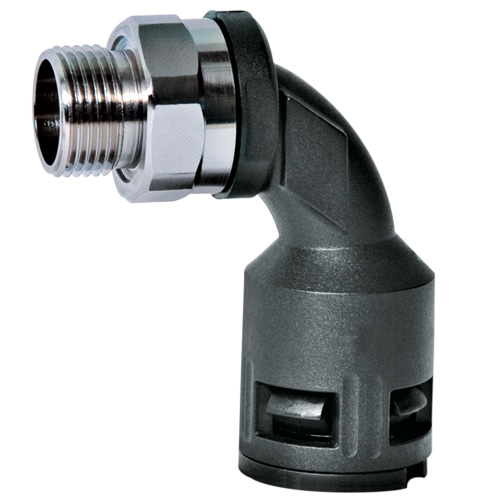

The Flexa RQBK90DR-N 15020019206 (Old Part Number 5020.019.206) is a Black plastic 90° bend elbow conduit connector with swivelling 1/2″ NPT metal thread.

Highlights:

  • thread length = 13.0 mm
  • turnable, swivelling nickel-plated brass outer thread, swivels both post & pre-installation
  • smooth bore gentle 90° bend elbow
  • includes sealing rings: one each of “OR type” O-ring and “FRH type” flat sealing ring

It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!

Use the RQBK90DR-N conduit connector with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$29.87 US$29.87
5 US$28.97 US$144.87
10 US$28.38 US$283.77
15 US$26.88 US$403.25
25 US$25.39 US$634.74
50 US$23.90 US$1,194.80
100 US$22.40 US$2,240.25
250 US$20.91 US$5,227.25
500+ US$19.42 US$9,707.75+
Unit Cost : US$
Extended Cost : US$29.87
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQBK90DR-N
Part Number

15020019206
Part Number (Old)

5020.019.206
Colour

Black
Thread Type

NPT
Thread Size

1/2"
Thread Length C (mm)

13. 0
Body Length E (mm)

65. 0
Body Length F (mm)

73. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

21. 2
ΦI Inside Diameter (mm)

13. 0
ΦB Max Outer Diameter (mm)

29. 5
Weight (kg|100)

7.1
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113250940

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening
  • swiveling also after installation

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
