5121.421.220 / 15121421220 RQBK90DR-M M20 x 1.5 mm swivel short thread FLEXAquick 90 degree bend elbow connector for 21.2 mm OD conduit

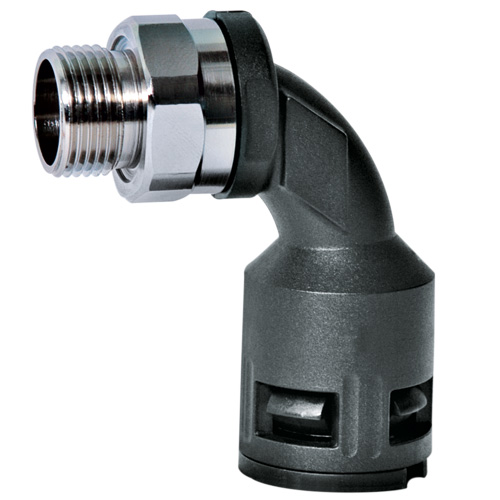

The Flexa RQBK90DR-M 15121421220 (Old Part Number 5121.421.220) is a Black plastic 90° bend elbow conduit connector with swivelling short metric M20 x 1.5 mm outer thread.
Highlights:
- thread length = 6.0 mm, short
- turnable, swivelling nickel-plated brass outer thread, swivels both post & pre-installation
- smooth bore gentle 90° bend elbow
- includes sealing rings: one each of “OR type” O-ring and “FRH type” flat sealing ring
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!
Use the RQBK90DR-M conduit connector with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$29.14 | US$29.14 |
| 5 | US$28.27 | US$141.33 |
| 10 | US$27.68 | US$276.83 |
| 15 | US$26.23 | US$393.39 |
| 25 | US$24.77 | US$619.23 |
| 50 | US$23.31 | US$1,165.60 |
| 100 | US$21.86 | US$2,185.50 |
| 250 | US$20.40 | US$5,099.50 |
| 500+ | US$18.94 | US$9,470.50+ |
Unit Cost : US$
Extended Cost : US$29.14
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQBK90DR-M |
| Part Number | 15121421220 |
| Part Number (Old) | 5121.421.220 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M20 x 1. 5 |
| Thread Length C (mm) | 6. 0 |
| Body Length E (mm) | 56. 0 |
| Body Length F (mm) | 72. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 21. 2 |
| ΦI Inside Diameter (mm) | 13. 0 |
| ΦB Max Outer Diameter (mm) | 29. 5 |
| Weight (kg|100) | 5.7 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113307736 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
- swiveling also after installation
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
