Flexa RQBK45-M 5102.054.263 / 15102054263

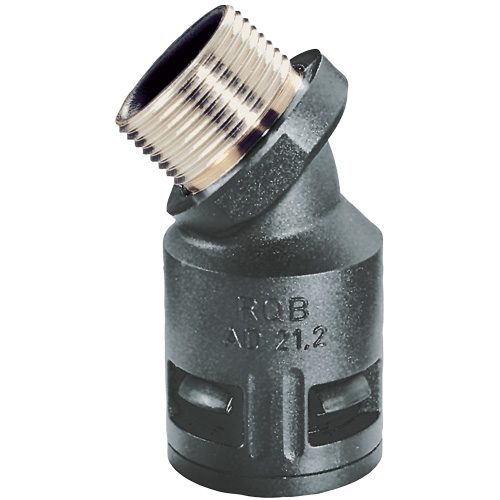

The Flexa RQBK45-M 15102054263 (Old Part Number 5102.054.263) is described as a plastic conduit connector, quick-type, bend 45°, metric M63 x 1.
5 nickel-plated brass outer thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. Included with the fitting are an O-ring and a flat sealing washer.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$68.93 | US$68.93 |
| 5 | US$55.14 | US$275.72 |
| 10 | US$53.77 | US$537.65 |
| 25 | US$51.70 | US$1,292.44 |
| 50 | US$48.25 | US$2,412.55 |
| 100+ | US$44.80 | US$4,480.45+ |
Unit Cost : US$
Extended Cost : US$68.93
Specifications
| Package Size | 5 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQBK45-M |
| Part Number | 15102054263 |
| Part Number (Old) | 5102.054.263 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M63 x 1. 5 |
| Thread Length C (mm) | 17. 0 |
| Body Length E (mm) | 97. 0 |
| Body Length F (mm) | 100. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54. 5 |
| ΦI Inside Diameter (mm) | 45. 5 |
| ΦB Max Outer Diameter (mm) | 71. 5 |
| Weight (kg|100) | 22.5 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113251565 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
