Mfr. Part #
11010801040
Categories IBIS FLEXA Flexible Metal Conduit 25 Roll, Metal Conduits, Non-Liquidtight, SPR-VA

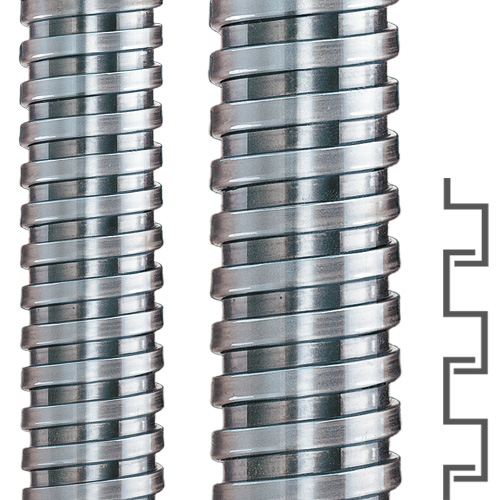

The Flexa SPR-VA 11010801040 (Old Part Number 1010.801.040) is a 40.0 x 45.0 mm ultra-flexible, stretch-resistant, stainless-steel conduit with a durable square fold, S-profile interlocking construction. A very versatile conduit for protecting wires, cables, pneumatic hoses, and fiber optic sensor bundles. Applications include: vac-sealers, hot-wrap and thermoforming machines, packaging and labelling machines, heat and exhaust ventilation control, heater and furnace control modules, and security sensor wiring.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$2,504.09 | US$2,504.09 |
2 | US$2,378.89 | US$4,757.77 |
5 | US$2,253.68 | US$11,268.41 |
10+ | US$2,128.48 | US$21,284.77+ |
Unit Cost : US$
Extended Cost : US$2504.09
Specifications
Product Type | Metal Conduit |
---|---|
Brand | Flexa |
Family | SPR-VA |
Part Number | 11010801040 |
Part Number (Old) | 1010.801.040 |
Colour | Metallic |
OD Outside Diameter (mm) | 45 |
ID Inside Diameter (mm) | 40 |
Static Bend Radius (mm) | 82 |
Dynamic Bend Radius (mm) | 205 |
Weight (kg|m) | 0.62 |
Package Size | 25m Per Roll |
Material | Stainless Steel |
IP Rating | IP40 |
Low Temperature Rating (°C) | -200 |
High Temperature Rating (°C) | 600 |
Data Sheet
Properties
- highly flexible
- stretch resistant
- lateral compression resistant
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
- Ex-Area acc. to EN 1127-1
