4010.111.017 / 14010111017 Flexa SPR-EDU-AS 17.0 x 21.0 mm ultra-flexible, stretch-resistant, galvanized steel conduit with over-braid galvanized steel wires

Product Name:
4010.111.017 / 14010111017 Flexa SPR-EDU-AS 17.0 x 21.0 mm ultra-flexible, stretch-resistant, galvanized steel conduit with over-braid galvanized steel wires

Mfr. Part # 14010111017 Categories IBIS FLEXA Braided Flexible Metal Conduit 50 Roll, Metal Conduits, Non-Liquidtight Metal Conduits, SPR-EDU-AS

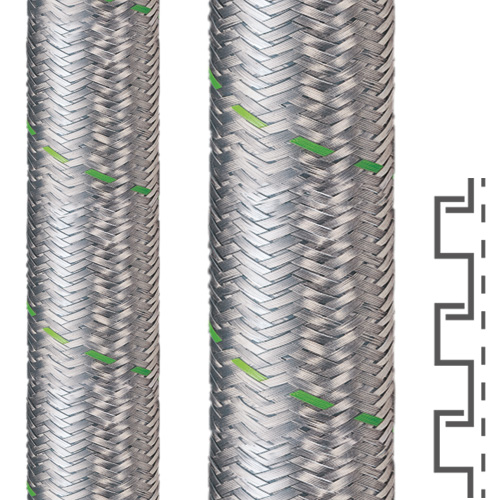

The Flexa SPR-EDU-AS 14010111017 (Old Part Number 4010.111.017) is a 17.0 x 21.0 mm ultra-flexible, stretch-resistant, galvanized steel conduit with an over-braid consisting of cross woven galvanized steel wires.

The durable square fold, S-profile interlocking construction and galvanized steel wire braiding combine for outstanding mechanical, abrasion and EMI/RFI protection for wires, cables, pneumatic hoses, and fiber optic bundles.

Provides very good protection against burning hot metal cutting shards & spurs.

Applications include: CNC, cutting, and milling machines, injection moulding, welding processes, RF communication cabling, and critical instrumentation wiring.

Do you need Metric threaded fittings for your application, use the US-M, metric threaded straight conduit fittings for terminating the conduit ends.

Do you need PG threaded fittings for your application, explore the US-P, PG threaded straight conduit fittings for terminating the conduit ends.

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can Ship in 2 – 3 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$1,082.89	US$1,082.89
2	US$1,028.75	US$2,057.49
5	US$974.60	US$4,873.01
10+	US$920.46	US$9,204.57+

Unit Cost : US$

Extended Cost : US$1082.89

Specifications

Package Size	50m (164 ft) per roll
Product Type	Metal Conduit
Brand	Flexa
Family	SPR-EDU-AS
Part Number	14010111017
Part Number (Old)	4010.111.017
Colour	Metallic
OD Outside Diameter (mm)	21
ID Inside Diameter (mm)	17
Static Bend Radius (mm)	38
Dynamic Bend Radius (mm)	95
Weight (kg\|m)	0.31
Material	Galvanized Steel
IP Rating	IP40
Low Temperature Rating (°C)	-50
High Temperature Rating (°C)	250
Customs Tariff Number	83071000
Country of Origin	Germany
GTIN / EAN Code	4025113139283

Data Sheet

Properties

provides high mechanical protection due to high tensile, torsional and bending strength
highly flexible
no untwisting of the conduit
DIN 49012, structure shape K acc. to DIN EN IEC 61386-23
