Mfr. Part #
11011111014
Categories IBIS FLEXA Flexible Metal Conduit 10 Roll, Metal Conduits, Non-Liquidtight, SPR-AS

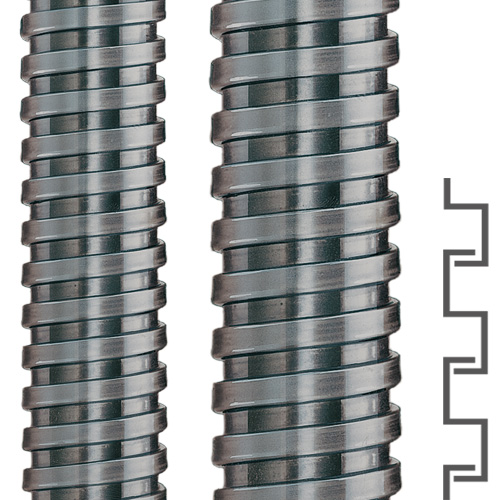

The Flexa SPR-AS 11011111014 (Old Part Number 1011.111.014) is a 14.0 x 17.0 mm ultra flexible, stretch resistant, galvanized steel conduit with a durable square fold, S-profile interlocking construction. A very versatile conduit for protecting wires, cables, pneumatic hoses, and fiber optic sensor bundles. Applications include: vac-sealers, hot-wrap and thermoforming machines, packaging and labelling machines, heat and exhaust ventilation control, heater and furnace control modules, and security sensor wiring. In a small 10 metre length roll.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$79.11 | US$79.11 |
2+ | US$75.15 | US$150.31+ |
Unit Cost : US$
Extended Cost : US$79.11
Specifications
Product Type | Metal Conduit |
---|---|
Brand | Flexa |
Family | SPR-AS |
Part Number | 11011111014 |
Part Number (Old) | 1011.111.014 |
Colour | Metallic |
OD Outside Diameter (mm) | 17 |
ID Inside Diameter (mm) | 14 |
Static Bend Radius (mm) | 30 |
Dynamic Bend Radius (mm) | 75 |
Weight (kg|m) | 0.14 |
Package Size | 10m Per Roll |
Material | Galvanized Steel |
IP Rating | IP40 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 250 |
Data Sheet
Properties
- highly flexible
- stretch resistant
- lateral compression resistant
- DIN 49012, structure shape G, acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Ex-Area acc. to EN 1127-1
