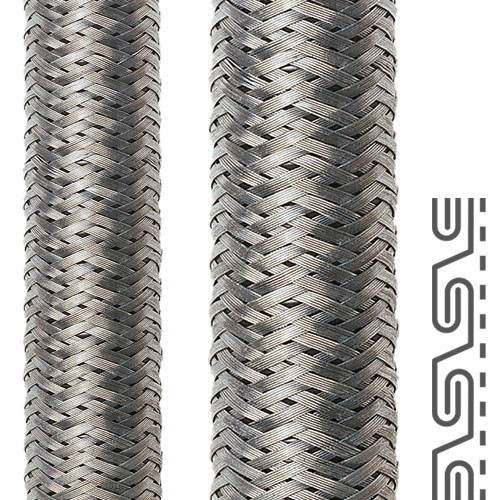

The Flexa FLEXAgraff-CU-AS 14110701049 (Old Part Number 4110.701.049) is a 49.0 x 56.0 mm bend-limiting galvanized steel conduit covered with a wire braid consisting of cross woven round tinned-copper wires. The rugged double interlocked construction and wire braiding combine for outstanding mechanical, abrasion and EMC protection for wires, cables, pneumatic hoses, and fiber optic bundles. It provides an EMC screening factor up to 30 MHz together with “no-twisting” flexibility.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$2,411.93 | US$2,411.93 |
| 2+ | US$2,291.33 | US$4,582.67+ |
Unit Cost : US$
Extended Cost : US$2411.93
Specifications
| Product Type | Metal Conduit |
|---|---|
| Brand | Flexa |
| Family | FLEXAgraff-CU-AS |
| Part Number | 14110701049 |
| Part Number (Old) | 4110.701.049 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 56 |
| ID Inside Diameter (mm) | 49 |
| Static Bend Radius (mm) | 210 |
| Dynamic Bend Radius (mm) | 525 |
| Weight (kg|m) | 1420 |
| Package Size | 10m Per Roll |
| Material | Galvanized Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
Data Sheet
Download Data Sheet for Flexa FLEXAgraff-CU-AS 4110.701.049 / 14110701049
Properties
- high tensile and twisting strength
- no untwisting of the conduit
- extremely flexible
- approved acc. to DIN EN IEC 61386-23
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
- EMC Applications
- Ex-Area acc. to EN 1127-1
