Flexa FLEXAgraff-CU-AS 4110.701.023 / 14110701023

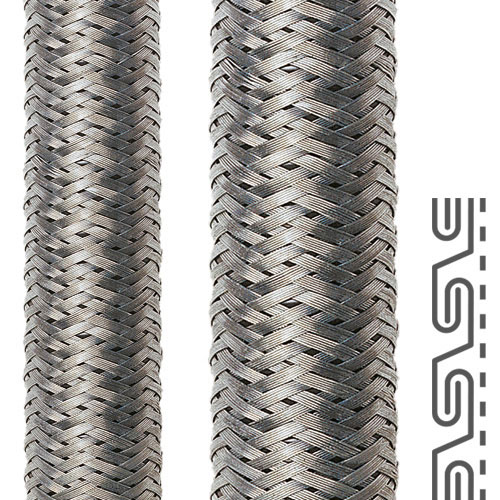

The Flexa FLEXAgraff-CU-AS 14110701023 (Old Part Number 4110.701.023) is a 23.0 x 27.0 mm bend-limiting galvanized steel conduit covered with a wire braid consisting of cross woven round tinned-copper wires. The rugged double interlocked construction and wire braiding combine for outstanding mechanical, abrasion and EMC protection for wires, cables, pneumatic hoses, and fiber optic bundles. It provides an EMC screening factor up to 30 MHz together with “no-twisting” flexibility.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$2,598.27 US$2,598.27
2 US$2,468.36 US$4,936.71
5 US$2,338.44 US$11,692.22
10+ US$2,208.53 US$22,085.30+
Unit Cost : US$
Extended Cost : US$2598.27
Add to Quote

Specifications

Product Type

Metal Conduit

Brand

Flexa

Family

FLEXAgraff-CU-AS

Part Number

14110701023

Part Number (Old)

4110.701.023

Colour

Metallic

OD Outside Diameter (mm)

27

ID Inside Diameter (mm)

23

Static Bend Radius (mm)

90

Dynamic Bend Radius (mm)

225

Weight (kg|m)

0.575

Package Size

25m Per Roll

Material

Galvanized Steel

IP Rating

IP40

Low Temperature Rating (°C)

-50

High Temperature Rating (°C)

250

Data Sheet

Download Data Sheet for Flexa FLEXAgraff-CU-AS 4110.701.023 / 14110701023

Properties

  • high tensile and twisting strength
  • no untwisting of the conduit
  • extremely flexible
  • approved acc. to DIN EN IEC 61386-23
  • screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
  • Sensor Technology
  • EMC Applications
  • Ex-Area acc. to EN 1127-1
