Mfr. Part #
11080101031
Categories FLEXAgraff-AS, IBIS FLEXAgraff Flexible Metal Conduit 25 Roll, Metal Conduits, Non-Liquidtight

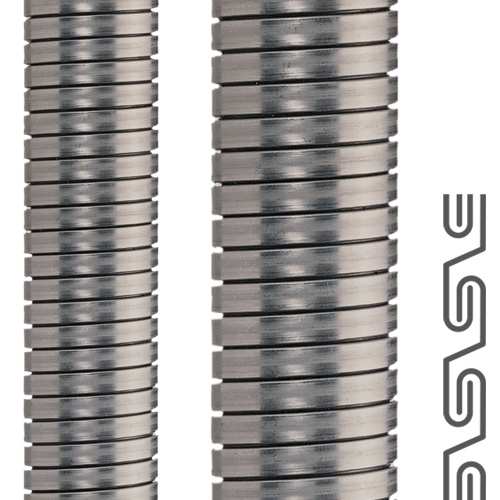

The Flexa FLEXAgraff-AS 11080101031 (Old Part Number 1080.101.031) is a 31.0 x 36.0 mm bend-limiting galvanized steel conduit with a rugged double interlocked construction for protecting wires, cables, pneumatic hoses, and fiber optic sensor bundles. It provides a high EMC shielding factor, with no-twist flexibility and mechanical protection.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$951.65 | US$951.65 |
2 | US$904.07 | US$1,808.14 |
5 | US$856.49 | US$4,282.43 |
10+ | US$808.90 | US$8,089.03+ |
Unit Cost : US$
Extended Cost : US$951.65
Specifications
Product Type | Metal Conduit |
---|---|
Brand | Flexa |
Family | FLEXAgraff-AS |
Part Number | 11080101031 |
Part Number (Old) | 1080.101.031 |
Colour | Metallic |
OD Outside Diameter (mm) | 36 |
ID Inside Diameter (mm) | 31 |
Static Bend Radius (mm) | 130 |
Dynamic Bend Radius (mm) | 325 |
Weight (kg|m) | 0.64 |
Package Size | 25m Per Roll |
Material | Galvanized Steel |
IP Rating | IP40 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 250 |
Data Sheet
Properties
- high tensile and twisting strength
- no untwisting of the conduit
- very flexible
- high shielding factor
- approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Ex-Area Acc to EN 1127-1
