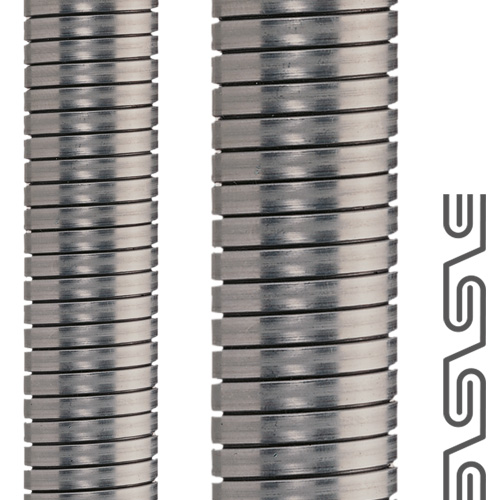

The Flexa FLEXAgraff-AS 11080101008 (Old Part Number 1080.101.008) is an 8.0 x 10.0 mm bend-limiting galvanized steel conduit with a rugged double interlocked construction for protecting wires, cables, pneumatic hoses, and fiber optic sensor bundles. It provides a high EMC shielding factor, with no-twist flexibility and mechanical protection.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$645.66 | US$645.66 |
| 2 | US$613.38 | US$1,226.75 |
| 5 | US$581.09 | US$2,905.47 |
| 10+ | US$548.81 | US$5,488.11+ |
Unit Cost : US$
Extended Cost : US$645.66
Specifications
| Product Type | Metal Conduit |
|---|---|
| Brand | Flexa |
| Family | FLEXAgraff-AS |
| Part Number | 11080101008 |
| Part Number (Old) | 1080.101.008 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 10 |
| ID Inside Diameter (mm) | 8 |
| Static Bend Radius (mm) | 40 |
| Dynamic Bend Radius (mm) | 100 |
| Weight (kg|m) | 0.09 |
| Package Size | 50m Per Roll |
| Material | Galvanized Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
Data Sheet
Properties
- high tensile and twisting strength
- no untwisting of the conduit
- very flexible
- high shielding factor
- approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Ex-Area Acc to EN 1127-1
Certifications
