4210.101.021 / 14210101021 Flexa SPR-PVC-EDU-AS 21.0 x 27.0 mm PVC jacketed flexible metal conduit, with galvanized steel over-braid, EMC shielding

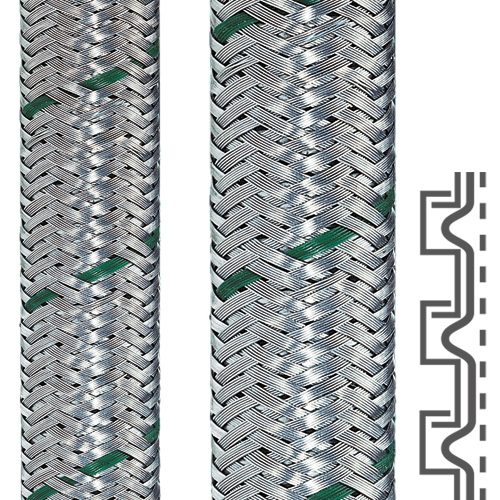

The Flexa SPR-PVC-EDU-AS 14210101021 (Old Part Number 4210.101.021) is a 21.0 x 27.0 mm very-flexible, liquidtight, stretch-resistant, galvanized steel conduit with a black PVC jacket all protected by an EMC shielding over-braid consisting of cross woven galvanized steel wires.
The durable square fold, S-profile construction, PVC sheathing, and galvanized steel wire braiding combine for outstanding mechanical, abrasion and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles.
It provides very good protection against burning hot metal cutting shards & spurs, lubricants and cutting fluids.
Applications include: CNC, cutting and milling machines, injection molding, and welding processes.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$2,249.55 | US$2,249.55 |
| 2 | US$2,137.07 | US$4,274.15 |
| 5 | US$2,024.60 | US$10,122.98 |
| 10+ | US$1,912.12 | US$19,121.18+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | SPR-PVC-EDU-AS |
| Part Number | 14210101021 |
| Part Number (Old) | 4210.101.021 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 27 |
| ID Inside Diameter (mm) | 21 |
| Static Bend Radius (mm) | 60 |
| Dynamic Bend Radius (mm) | 150 |
| Weight (kg|m) | 0.51 |
| Material | Galvanized Steel, Jacket: PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113141545 |
Data Sheet
Properties
- protection from hot swarfs
- widely resistant against oils
- free of silicone and cadmium
- very flexible
- DIN 49012, structure shape M approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Injection Moulding Machines
- Metal Cutting Machines
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
