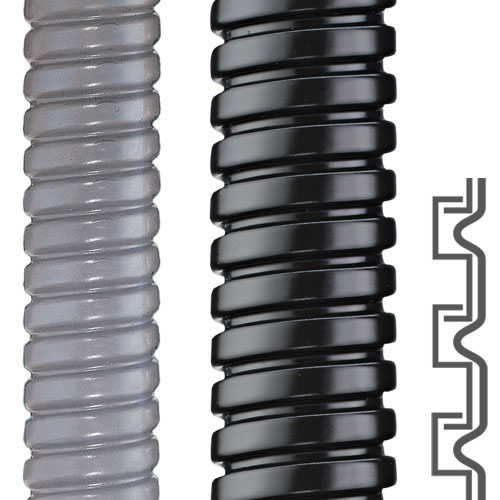

The Flexa SPR-PVC-AS 12011111022 (Old Part Number 2011.111.022) is a 22.0 x 27.0 mm very flexible liquidtight galvanized steel conduit with a grey PVC protective jacket. The stretch-resistant, durable interlocked construction, and PVC sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles. The SPR-PVC-AS is a very versatile conduit usable in a variety of wiring applications on all types of machinery, conveyors, robotics, and automation equipment. Good indoors and outdoors. In a small 10 metre length roll.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$295.48 US$295.48
2+ US$280.71 US$561.41+
Unit Cost : US$
Extended Cost : US$295.48
Add to Quote

Specifications

Product Type

Metal Conduit

Brand

Flexa

Family

SPR-PVC-AS

Part Number

12011111022

Part Number (Old)

2011.111.022

Colour

Grey

OD Outside Diameter (mm)

27

ID Inside Diameter (mm)

22

Static Bend Radius (mm)

60

Dynamic Bend Radius (mm)

150

Weight (kg|m)

0.36

Package Size

10m Per Roll

Material

Galvanized Steel, Jacket: PVC

IP Rating

IP68

Low Temperature Rating (°C)

-25

High Temperature Rating (°C)

90

Extended Temperature (°C)

100

Data Sheet

Properties

  • weatherproof
  • watertight
  • widely resistant to seawater, acids, oils
  • free of silicone and cadmium
  • very flexible
  • stretch-resistant
  • compression-resistant
  • DIN 49012, structure shape I, approved acc. to DIN EN IEC 61386-23

Applications

  • Machine and Plant Constructions
  • Shipbuilding
  • Automation
  • Electrical Installations
  • Sensor Technology
