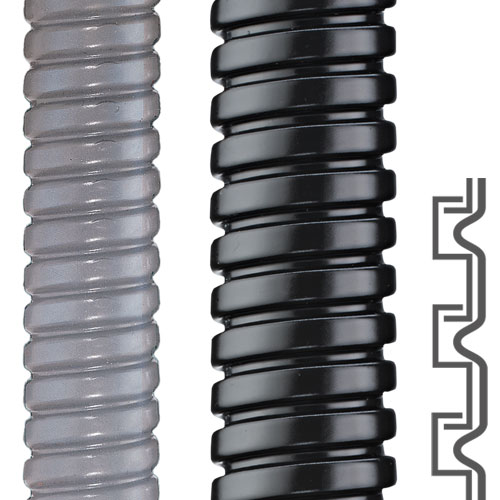

The Flexa SPR-PVC-AS 12011111007 (Old Part Number 2011.111.007) is a 7.0 x 10.0 mm very flexible liquidtight galvanized steel conduit with a grey PVC protective jacket. The stretch-resistant, durable interlocked construction, and PVC sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles. The SPR-PVC-AS is a very versatile conduit usable in a variety of wiring applications on all types of machinery, conveyors, robotics, and automation equipment. Good indoors and outdoors. In a small 10 metre length roll.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$105.85 | US$105.85 |
| 2+ | US$100.56 | US$201.12+ |
Unit Cost : US$
Extended Cost : US$105.85
Specifications
| Product Type | Metal Conduit |
|---|---|
| Brand | Flexa |
| Family | SPR-PVC-AS |
| Part Number | 12011111007 |
| Part Number (Old) | 2011.111.007 |
| Colour | Grey |
| OD Outside Diameter (mm) | 10 |
| ID Inside Diameter (mm) | 7 |
| Static Bend Radius (mm) | 25 |
| Dynamic Bend Radius (mm) | 65 |
| Weight (kg|m) | 0.079 |
| Package Size | 10m Per Roll |
| Material | Galvanized Steel, Jacket: PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
Data Sheet
Properties
- weatherproof
- watertight
- widely resistant to seawater, acids, oils
- free of silicone and cadmium
- very flexible
- stretch-resistant
- compression-resistant
- DIN 49012, structure shape I, approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
Certifications
