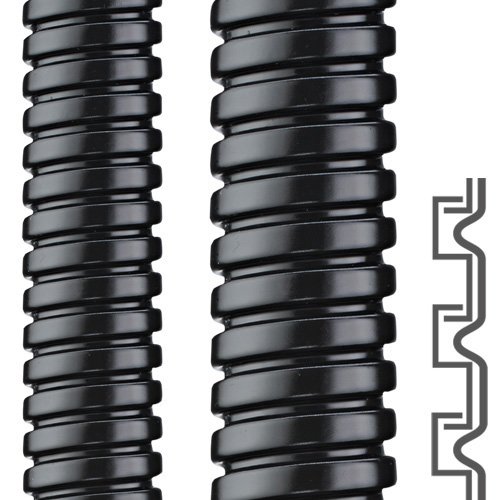

The Flexa SPR-PU-F 12213702049 (Old Part Number 2213.702.049) is a 49.0 x 56.0 mm flexible liquidtight galvanized steel conduit that features a specially blended, HL2/HL3 rated, black polyurethane (PU) flame retardant protective jacket. The stretch-resistant, durable interlocked construction, and PU sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, and fiber optic bundles. The SPR-PU-F was specifically made for wiring applications involving passenger railcars, locomotives, buses, and mass transit vehicles of all types. V0 (UL 94), EN 45545-2 (R22;HL2), (R23;HL3). Use indoors and outdoors.
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$2,513.16 | US$2,513.16 |
2 | US$2,387.50 | US$4,775.00 |
5 | US$2,261.84 | US$11,309.22 |
10+ | US$2,136.19 | US$21,361.86+ |
Specifications
Product Type | Metal Conduit |
---|---|
Brand | Flexa |
Family | SPR-PU-F |
Part Number | 12213702049 |
Part Number (Old) | 2213.702.049 |
Colour | Black |
OD Outside Diameter (mm) | 56 |
ID Inside Diameter (mm) | 49 |
Static Bend Radius (mm) | 130 |
Dynamic Bend Radius (mm) | 325 |
Weight (kg|m) | 1080 |
Package Size | 25m Per Roll |
Material | Galvanized Steel, Jacket: PU |
IP Rating | IP68 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 100 |
Extended Temperature (°C) | 130 |
Flammability Rating (UL 94) | V0 |
Data Sheet
Properties
- V0 according to UL 94
- flame-retardant
- self-extinguishing
- weatherproof
- widely resistant to seawater, acids and oils
- free of halogen, silicone, cadmium
- compression-resistant
- approved acc. to DIN EN IEC 61386-23 DIN 5510, part 2 EN 45545-HL3 NFF 16-101, 102
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry – Heavy Mechanical Load
- Shipbuilding
- Automation
- Electrical Installations
