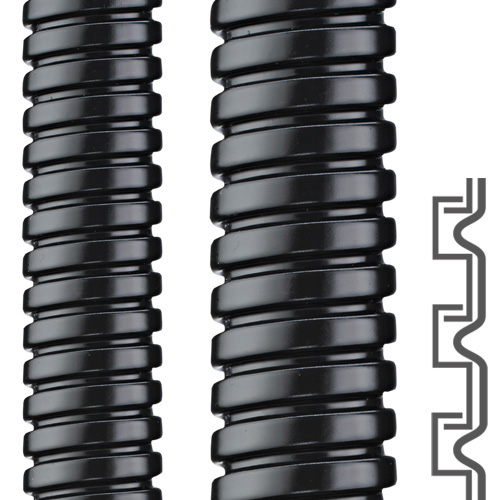

The Flexa SPR-PU-F 12213702038 (Old Part Number 2213.702.038) is a 38.0 x 45.0 mm flexible liquidtight galvanized steel conduit that features a specially blended, HL2/HL3 rated, black polyurethane (PU) flame retardant protective jacket. The stretch-resistant, durable interlocked construction, and PU sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, and fiber optic bundles. The SPR-PU-F was specifically made for wiring applications involving passenger railcars, locomotives, buses, and mass transit vehicles of all types. V0 (UL 94), EN 45545-2 (R22;HL2), (R23;HL3). Use indoors and outdoors.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,979.24 | US$1,979.24 |
| 2 | US$1,880.28 | US$3,760.56 |
| 5 | US$1,781.32 | US$8,906.58 |
| 10+ | US$1,682.35 | US$16,823.54+ |
Specifications
| Product Type | Metal Conduit |
|---|---|
| Brand | Flexa |
| Family | SPR-PU-F |
| Part Number | 12213702038 |
| Part Number (Old) | 2213.702.038 |
| Colour | Black |
| OD Outside Diameter (mm) | 45 |
| ID Inside Diameter (mm) | 38 |
| Static Bend Radius (mm) | 120 |
| Dynamic Bend Radius (mm) | 300 |
| Weight (kg|m) | 0.82 |
| Package Size | 25m Per Roll |
| Material | Galvanized Steel, Jacket: PU |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | V0 |
Data Sheet
Properties
- V0 according to UL 94
- flame-retardant
- self-extinguishing
- weatherproof
- widely resistant to seawater, acids and oils
- free of halogen, silicone, cadmium
- compression-resistant
- approved acc. to DIN EN IEC 61386-23 DIN 5510, part 2 EN 45545-HL3 NFF 16-101, 102
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry – Heavy Mechanical Load
- Shipbuilding
- Automation
- Electrical Installations
Certifications
