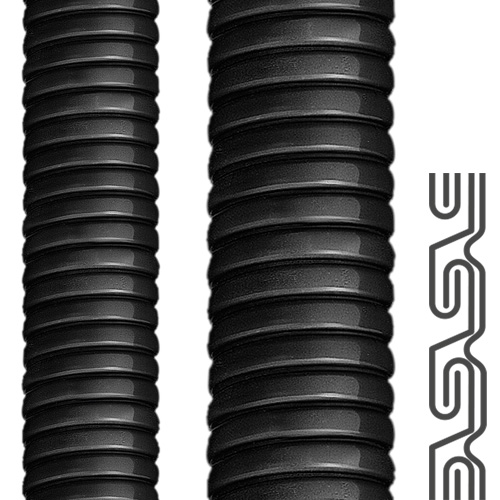

2133.702.029 / 12133702029 FLEXAgraff-PU-F 29.0 x 36.0 mm HL2 / HL3 rated liquidtight galvanized steel conduit, black polyurethane (PU) flame retardant protective jacket
The Flexa FLEXAgraff-PU-F 12133702029 (Old Part Number 2133.702.029) is a 29.0 x 36.0 mm HL2 and HL3 rated liquidtight galvanized steel conduit featuring a special blend, black polyurethane (PU) flame retardant protective jacket.
The bend-limiting, stretch-resistant, heavy-duty interlocked construction, and PU sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, and fiber optic bundles.
The FLEXAgraff-PU-F conduit was specifically made for wiring applications involving passenger railcars, locomotives, buses, EV electric-vehicles, and mass transit vehicles of all types. V0 (UL 94), EN 45545-2 (R22;HL2), (R23;HL3). Use indoors and outdoors.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,812.39 | US$1,812.39 |
| 2 | US$1,721.77 | US$3,443.54 |
| 5 | US$1,631.15 | US$8,155.76 |
| 10+ | US$1,540.53 | US$15,405.32+ |
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | FLEXAgraff-PU-F |
| Part Number | 12133702029 |
| Part Number (Old) | 2133.702.029 |
| Colour | Black |
| OD Outside Diameter (mm) | 36 |
| ID Inside Diameter (mm) | 29 |
| Static Bend Radius (mm) | 125 |
| Dynamic Bend Radius (mm) | 315 |
| Weight (kg|m) | 0.725 |
| Material | Galvanized Steel, Jacket: PU |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | V0 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113266767 |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Heating, Ventilation and Air Conditioning
- Outdoor Applications
Certifications
