Flexa US2-M 5018.335.016 / 15018335016

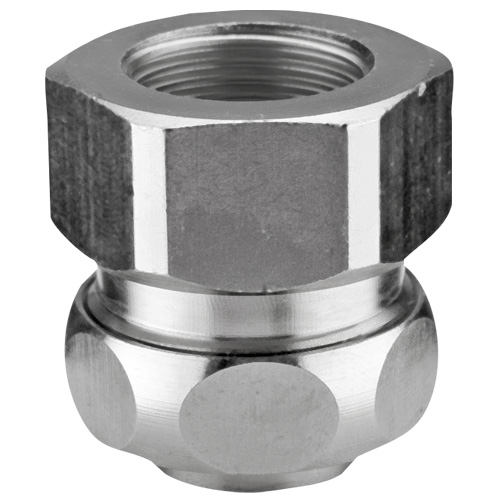

The Flexa US2-M 15018335016 (Old Part Number 5018.335.016) is described as a metal connector, safety-type, straight, metric M16 x 1.
5 inner thread, including ferrule [brass] and sealing [TPE].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$37.02 | US$37.02 |
| 5 | US$33.32 | US$166.59 |
| 10 | US$29.62 | US$296.16 |
| 20 | US$27.77 | US$555.30 |
| 50+ | US$25.91 | US$1,295.70+ |
Unit Cost : US$
Extended Cost : US$37.02
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | US2-M |
| Part Number | 15018335016 |
| Part Number (Old) | 5018.335.016 |
| Fits Conduit Types | AIRflex-KUW-EDU |
| Thread Type | Metric |
| Thread Size | M16 x 1. 5 |
| Thread Length C (mm) | 8. 0 |
| Body Length D (mm) | 27. 0 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 17. 0 |
| ΦI Inside Diameter (mm) | 11. 0 |
| ΦB Max Outer Diameter (mm) | 27. 0 |
| Weight (kg|100) | 3.000 |
| Package Size | 10 pcs |
| IP Rating | IP 54 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
Certifications
