Flexa US2-M 5012.327.010 / 15012327010

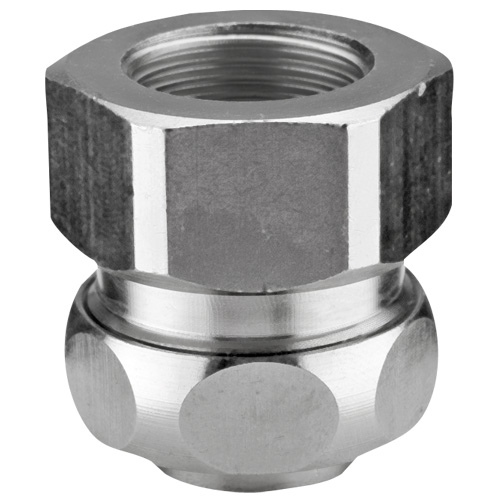

The Flexa US2-M 15012327010 (Old Part Number 5012.327.010) is described as a metal connector, safety-type, straight, metric M10 x 1.0 inner thread, including ferrule [brass] and sealing [TPE].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$26.94 | US$26.94 |
| 5 | US$24.25 | US$121.23 |
| 10 | US$21.55 | US$215.52 |
| 20 | US$20.21 | US$404.10 |
| 50+ | US$18.86 | US$942.90+ |
Unit Cost : US$
Extended Cost : US$26.94
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | US2-M |
| Part Number | 15012327010 |
| Part Number (Old) | 5012.327.010 |
| Fits Conduit Types | FLEXAgraff-AS, FLEXAgraff-VA, SPR-AS, SPR-VA |
| Thread Type | Metric |
| Thread Size | M10 x 1.0 |
| Thread Length C (mm) | 8 |
| Body Length D (mm) | 26 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 10 |
| ΦI Inside Diameter (mm) | 7.5 |
| ΦB Max Outer Diameter (mm) | 19 |
| Weight (kg|100) | 1.5 |
| Package Size | 25 pcs |
| IP Rating | IP 40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
