Mfr. Part #
10608800032
Categories IBIS FLEXA US Fitting 5 Pack, Metal Body Fittings, Straight, US-FOOD-M

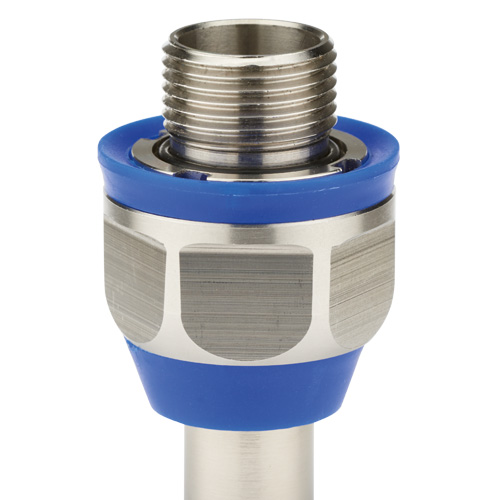

The Flexa US-FOOD-M 10608800032 (Old Part Number 0608.800.032) is described as a metal connector, safety-type, straight, metric M32 x 1.5 outer thread, including ferrule and sealing, food-safe.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$534.65 | US$534.65+ |
Unit Cost : US$
Extended Cost : US$534.65
Specifications
Product Type | Metal Body Fitting |
---|---|
Brand | Flexa |
Family | US-FOOD-M |
Part Number | 10608800032 |
Part Number (Old) | 0608.800.032 |
Fits Conduit Types | AIRflex-GRS-FOOD, Liquid-Tight-Food |
Thread Type | Metric |
Thread Size | M32 x 1.5 |
Thread Length C (mm) | 7.5 |
Body Length D (mm) | 68 |
Material | Stainless Steel |
OD Outside Diameter (mm) | 1" |
ΦI Inside Diameter (mm) | 27.8 |
ΦB Max Outer Diameter (mm) | 53 |
Weight (kg|100) | 19.325 |
Package Size | 5 pcs |
IP Rating | IP 68 |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- food safe
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
- IP 68 approved according to EN 6-529
- IP 59K approved according to DIN 40050-9 (internal audit) up to 40 bar, 80°C
Applications
- machine and plant constructions
- food and beverage industry
- automation
- electrical installations
