Flexa US-FOOD-M 0608.800.020 / 10608800020

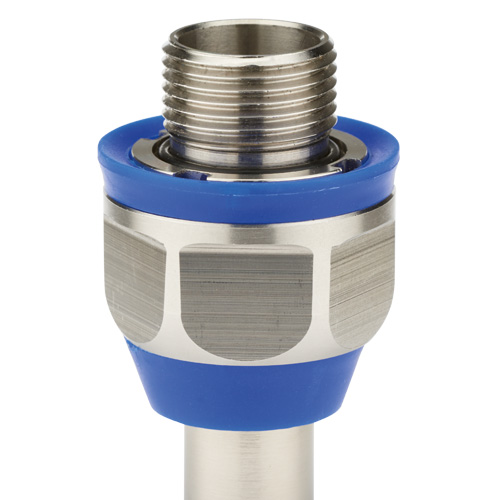

The Flexa US-FOOD-M 10608800020 (Old Part Number 0608.800.020) is described as a metal connector, safety-type, straight, metric M20 x 1.5 outer thread, including ferrule and sealing, food-safe.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$214.79 | US$214.79 |
| 5 | US$193.31 | US$966.56 |
| 10 | US$171.83 | US$1,718.32 |
| 20 | US$161.09 | US$3,221.85 |
| 50+ | US$150.35 | US$7,517.65+ |
Unit Cost : US$
Extended Cost : US$214.79
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | US-FOOD-M |
| Part Number | 10608800020 |
| Part Number (Old) | 0608.800.020 |
| Fits Conduit Types | AIRflex-GRS-FOOD, Liquid-Tight-Food |
| Thread Type | Metric |
| Thread Size | M20 x 1.5 |
| Thread Length C (mm) | 7.5 |
| Body Length D (mm) | 48.5 |
| Material | Stainless Steel |
| OD Outside Diameter (mm) | 1/2" |
| ΦI Inside Diameter (mm) | 14 |
| ΦB Max Outer Diameter (mm) | 34 |
| Weight (kg|100) | 7.04 |
| Package Size | 10 pcs |
| IP Rating | IP 68 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- food safe
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
- IP 68 approved according to EN 6-529
- IP 59K approved according to DIN 40050-9 (internal audit) up to 40 bar, 80°C
Applications
- machine and plant constructions
- food and beverage industry
- automation
- electrical installations
