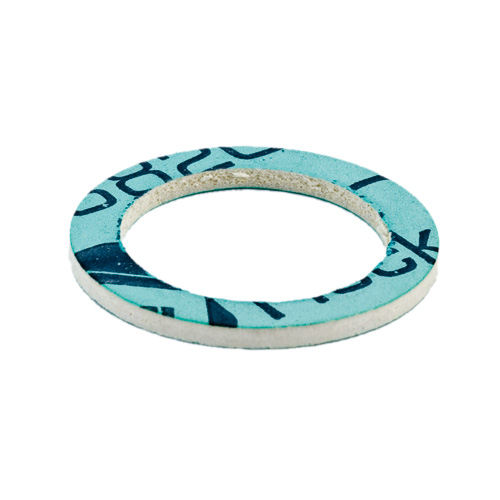

0331.001.003 / 10331001003 Flexa FRH-N 3/8″ NPT flat green Centellen® sealing washer

The Flexa FRH-N 10331001003 (Old Part Number 0331.001.003) is a 3/8″ NPT flat Centellen® sealing washer for protecting NPT threads from liquid and dust ingress.

Use the FRH-N sealing washer with all 3/8″ NPT FLEXAquick plastic threaded fittings, FLEXA metal threaded conduit fittings, or any other devices with the same thread size, such as cable glands, strain reliefs, and cord grips.

Details:

  • ideal for IP 68 sealing requirement
  • high mechanical stress tolerance

Material:

  • Made of Centellen® (green) WS 3820, aramide fibres bonded with NBR rubber
In Stock: 50
Stock: 50 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

50 in stock

Quantity Unit Price Ext. Price
1 US$1.73 US$1.73
5 US$1.68 US$8.39
10 US$1.64 US$16.44
15 US$1.56 US$23.36
25 US$1.47 US$36.76
50 US$1.38 US$69.20
100 US$1.30 US$129.75
250 US$1.21 US$302.75
500+ US$1.12 US$562.25+
Unit Cost : US$
Extended Cost : US$1.73
Add to Quote

Specifications

Package Size

50 pcs

Product Type

Accessories

Brand

Flexa

Family

FRH-N

Part Number

10331001003

Part Number (Old)

0331.001.003

Colour

Green

Thread Type

NPT

Thread Size

3/8"

Thickness S (mm)

2

Material

Centellen

OD Outside Diameter (mm)

22

ΦI Inside Diameter (mm)

16.7

Weight (kg|100)

0.1

Low Temperature Rating (°C)

-50.0

High Temperature Rating (°C)

200

Customs Tariff Number

68159900

Country of Origin

Germany

GTIN / EAN Code

4025113207708

Data Sheet

Properties

  • resistant against oil
  • protection against water and dust
  • UV resistant
  • free of halogen
  • high mechanical stresses

Certifications
