Showing all 7 results

1010.101.003 / 11010101003 Flexa SPR 3.0 x 4.9 mm low-stretch ultra-flexible small diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.003 / 11010101003 Flexa SPR 3.0 x 4.9 mm low-stretch ultra-flexible small diameter galvanized steel conduit

The Flexa SPR 11010101003, formerly 1010.101.003, is a 3.0 x 4.9 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting fine wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect fine wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 3.0 mm inside diameter and 4.9 mm outside diameter, this is the smallest SPR conduit size and is best suited for very small wire bundles, fine sensor leads, and compact fiber optic protection where routing space is especially limited.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.

Features a wide operating temperature range of −50°C to +250°C.



1010.101.004 / 11010101004 Flexa SPR 4.0 x 6.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.004 / 11010101004 Flexa SPR 4.0 x 6.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

The Flexa SPR 11010101004, formerly 1010.101.004, is a 4.0 x 6.0 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting fine wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect fine wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 4.0 mm inside diameter and 6.0 mm outside diameter, this SPR size provides slightly more internal capacity than the smallest SPR conduit while still supporting very compact routing for fine wires, sensor leads, and fiber optic bundles.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.

Features a wide operating temperature range of -50ºC to +250ºC.

1010.101.005 / 11010101005 Flexa SPR 4.8 x 7.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.005 / 11010101005 Flexa SPR 4.8 x 7.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

The Flexa SPR 11010101005, formerly 1010.101.005, is a 4.8 x 7.0 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting fine wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect fine wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 4.8 mm inside diameter and 7.0 mm outside diameter, this SPR size provides additional internal capacity for small wire groups, sensor leads, and fiber optic bundles while still maintaining compact routing and high flexibility.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.

Features a wide operating temperature range of -50ºC to +250ºC.

1010.101.006 / 11010101006 Flexa SPR 6.0 x 8.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.006 / 11010101006 Flexa SPR 6.0 x 8.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

The Flexa SPR 11010101006 (formerly 1010.101.006) is a 6.0 x 8.0 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting fine wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect fine wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 6.0 mm inside diameter and 8.0 mm outside diameter, this SPR size offers a practical mid-range option for compact wire groups, sensor leads, and fiber optic bundles that need more internal capacity while still requiring high flexibility.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.

Features a wide operating temperature range of -50ºC to +250ºC.

1010.101.007 / 11010101007 Flexa SPR 7.0 x 9.3 mm low-stretch ultra-flexible small-diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.007 / 11010101007 Flexa SPR 7.0 x 9.3 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

The Flexa SPR 11010101007 (formerly 1010.101.007) is a 7.0 x 9.3 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting fine wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect fine wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 7.0 mm inside diameter and 9.3 mm outside diameter, this SPR size provides more room for larger compact wire groups, sensor leads, and fiber optic bundles while still maintaining a small overall conduit profile and high flexibility.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.

Features a wide operating temperature range of -50ºC to +250ºC.

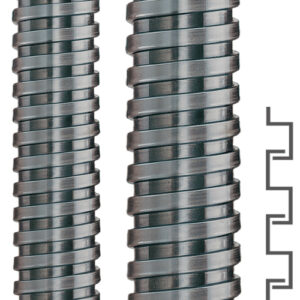

1010.101.009 / 11010101009 Flexa SPR 9.0 x 11.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.009 / 11010101009 Flexa SPR 9.0 x 11.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

The Flexa SPR 11010101009, formerly 1010.101.009, is a 9.0 x 11.0 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 9.0 mm inside diameter and 11.0 mm outside diameter, this SPR size provides increased internal capacity for larger compact wire groups, sensor leads, and fiber optic bundles while still maintaining the high flexibility of the unjacketed SPR construction.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring, and ideal for OEM applications, such as stretch limiting armoring of fiber optic bundles, and sensor cables for temperature control equipment.

Features a wide operating temperature range of -50ºC to +250ºC.

1010.101.010 / 11010101010 Flexa SPR 10.0 x 13.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit
Add to cartAdd to Quote

1010.101.010 / 11010101010 Flexa SPR 10.0 x 13.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

The Flexa SPR 11010101010, formerly 1010.101.010, is a 10.0 x 13.0 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting wires, cables, sensor leads, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping protect wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.

With a 10.0 mm inside diameter and 13.0 mm outside diameter, this is the largest standard SPR conduit size in this small-diameter range and is suited for larger compact wire groups, sensor leads, and fiber optic bundles that still require high flexibility and unjacketed galvanized steel protection.

Applications for SPR low-stretch small-diameter conduit:

Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection

Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.

Features a wide operating temperature range of -50ºC to +250ºC.
