1010.101.006 / 11010101006 Flexa SPR 6.0 x 8.0 mm low-stretch ultra-flexible small-diameter galvanized steel conduit

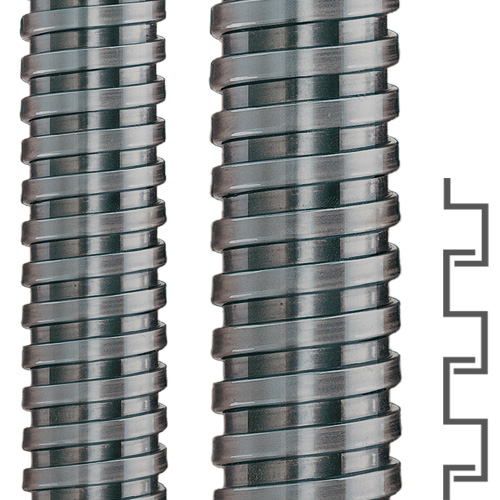

The Flexa SPR 11010101006 (formerly 1010.101.006) is a 6.0 x 8.0 mm lightweight, ultra-flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction. It is ideal for protecting fine wires, cables, sensor leads, and fiber optic bundles.
The low-stretch construction allows only limited axial extension, helping protect fine wires, sensor leads, and fiber optic bundles where small amounts of movement remain within the application’s tolerance.
With a 6.0 mm inside diameter and 8.0 mm outside diameter, this SPR size offers a practical mid-range option for compact wire groups, sensor leads, and fiber optic bundles that need more internal capacity while still requiring high flexibility.
Applications for SPR low-stretch small-diameter conduit:
Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection
Suitable for MRO protective wiring and OEM applications requiring low-stretch protection for fiber optic bundles and sensor cables used with temperature-control equipment.
Features a wide operating temperature range of -50ºC to +250ºC.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$231.51 | US$231.51 |
| 2 | US$219.93 | US$439.87 |
| 5 | US$208.36 | US$1,041.80 |
| 10+ | US$196.78 | US$1,967.84+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | SPR |
| Part Number | 11010101006 |
| Part Number (Old) | 1010.101.006 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 8 |
| ID Inside Diameter (mm) | 6 |
| Static Bend Radius (mm) | 20 |
| Dynamic Bend Radius (mm) | 50 |
| Weight (kg|m) | 0.048 |
| Material | Galvanized Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113114044 |
Data Sheet
Properties
- ultra-flexible construction
- low-stretch axial performance
- S-profile design
- galvanized steel material
- suitable for fine wire, sensor lead, and fiber optic bundle protection
Applications
- compact wire groups and sensor lead routing
- fiber optic bundle protection
- measuring and control equipment
- MRO and OEM machinery wiring
- temperature-control and process equipment
Certifications
