EWM-M
EWM-M Connector

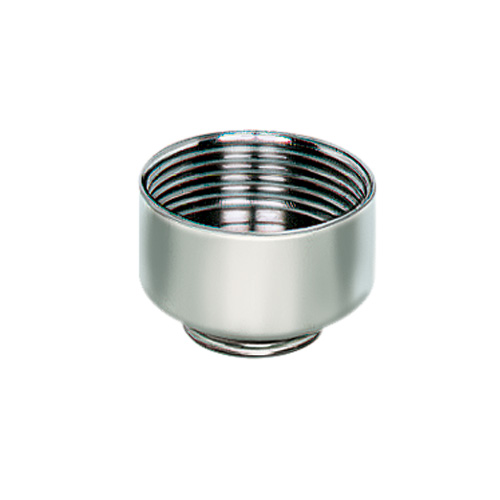

The Flexa EWM-M is a nickel-plated brass thread enlarger with Metric threads made for use with all plastic or metal Metric threaded conduit fittings, cable glands, strain reliefs, and cord grips. The EWM-M enlarges from a smaller outside thread to a larger inside thread. A sealing O-ring is included.
All of the products from this family have the following specifications:
- Material: nickel-plated brass
- Temperature: -40° C ... + 200°C
FLEXA EWM-M Accessories
Showing 1 – 7 of 7 results Showing all 7 results Showing the single result No results found
Sort by Name A – Z
Filters Sort results
Reset Apply
Image | Part Number | Material | Thread Type | Outer Thread Size (mm) | Inner Thread Size (mm) | Quantity | Product Details | Add to Cart |
---|---|---|---|---|---|---|---|---|
10360M12M16 Old: 0360.M12.M16 | Ni-Brass | Metric | M12x1.5 | M16x1.5 | Max: 100000 Min: 1 Step: 1 | |||
10360M16M20 Old: 0360.M16.M20 | Ni-Brass | Metric | M16x1.5 | M20x1.5 | Max: 100000 Min: 1 Step: 1 | |||
10360M20M25 Old: 0360.M20.M25 | Ni-Brass | Metric | M20x1.5 | M25x1.5 | Max: 100000 Min: 1 Step: 1 | |||
10360M25M32 Old: 0360.M25.M32 | Ni-Brass | Metric | M25x1.5 | M32x1.5 | Max: 100000 Min: 1 Step: 1 | |||
10360M32M40 Old: 0360.M32.M40 | Ni-Brass | Metric | M32x1.5 | M40x1.5 | Max: 100000 Min: 1 Step: 1 | |||
10360M40M50 Old: 0360.M40.M50 | Ni-Brass | Metric | M40x1.5 | M50x1.5 | Max: 100000 Min: 1 Step: 1 | |||
10360M50M63 Old: 0360.M50.M63 | Ni-Brass | Metric | M50x1.5 | M63x1.5 | Max: 100000 Min: 1 Step: 1 |
