2010.182.009 / 12010182009 Flexa SPR-VA-PVC 9.0 x 12.0 mm Black PVC jacketed stainless steel small diameter stretch resistant liquidtight conduit for wire protection

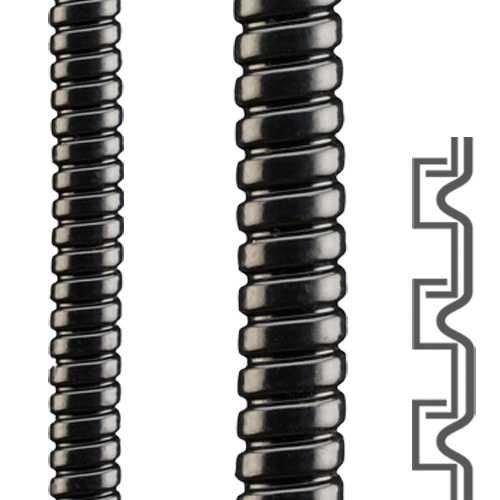

The Flexa SPR-VA-PVC 12010182009 (previously known as 2010.182.009) is a 9.0 x 12.0 mm micro-diameter, liquid-tight stainless steel conduit with a black PVC protective jacket.
Its robust, corrosion-resistant V2A stainless steel, combined with a stretch-resistant interlocked construction and durable PVC sheathing, provide exceptional mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fibre optic bundles.
Applications for micro-diameter conduits: The SPR-VA-PVC is highly versatile making it ideal for protecting sensor wires and tiny fibre-optic cables in and around packaging machinery, cobot assisted manufacturing, conveyors, robotics, automation equipment, OEM sensor cables, and CCTV security camera installations. It’s corrosion resistant and liquid-tight making it suitable for both indoor and outdoor use.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,267.00 | US$1,267.00 |
| 2 | US$1,203.65 | US$2,407.30 |
| 5 | US$1,140.30 | US$5,701.50 |
| 10+ | US$1,076.95 | US$10,769.50+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | SPR-VA-PVC |
| Part Number | 12010182009 |
| Part Number (Old) | 2010.182.009 |
| Colour | Black |
| OD Outside Diameter (mm) | 12 |
| ID Inside Diameter (mm) | 9 |
| Static Bend Radius (mm) | 38 |
| Dynamic Bend Radius (mm) | 100 |
| Weight (kg|m) | 0.105 |
| Material | Stainless Steel | Jacket: PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113304780 |
Data Sheet
Properties
- very flexible
- stretch resistant
- watertight
- widely resistant to solvents and chemicals
- free of silicone and cadmium
Applications
- automation
- sensor technology
- fiber optic technology
- medical technology
- machinery and equipment
Certifications
