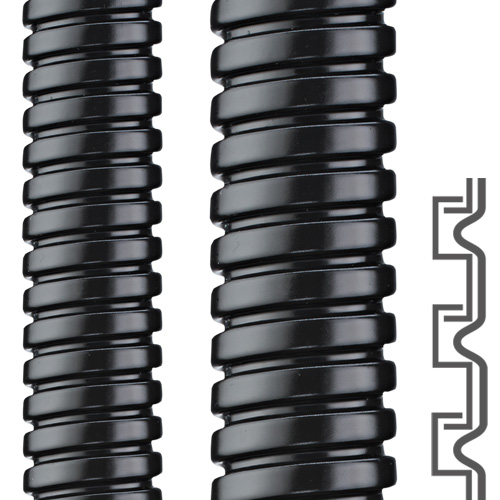

2010.102.009 / 12010102009 Flexa SPR-PVC 9.0 x 12.0 mm low-stretch black PVC-jacketed galvanized steel small-diameter conduit

The Flexa SPR-PVC 12010102009, formerly 2010.102.009, is a 9.0 x 12.0 mm highly flexible small-diameter conduit made from galvanized steel with a low-stretch S-profile construction and a black PVC jacket. It provides IP68 protection for larger wire groups, sensor leads, cables, and fiber optic bundles.

The low-stretch construction allows only limited axial extension, helping reduce pulling forces on protected wires, sensor leads, and fiber optic bundles. The PVC jacket adds exterior and ingress protection compared with unjacketed SPR.

With a 9.0 mm inside diameter and 12.0 mm outside diameter, this is the largest standard size in the SPR-PVC range. It provides increased internal capacity for larger wire groups, sensor leads, and fiber optic bundles while maintaining high flexibility, compact jacketed protection, and an IP68 rating.

Applications for SPR-PVC low-stretch small-diameter conduit: This larger SPR-PVC size is used for protected routing of wire groups, sensor leads, and fiber optic bundles in measuring and control equipment, machinery, instruments, and OEM assemblies. The black PVC jacket and IP68 rating make it suitable where added exterior and ingress protection are required.
