2010.102.006 / 12010102006 Flexa SPR-PVC 6.0 x 9.0 mm Black PVC jacketed micro-diameter conduit, liquid-tight, stretch resistant

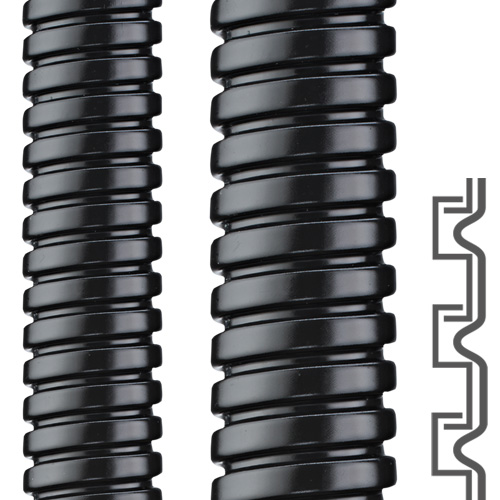

The Flexa SPR-PVC 12010102006 (Old Part Number 2010.102.006) is a 6.0 x 9.0 mm small diameter, flexible, black PVC jacketed, galvanized steel conduit with stretch resistant construction.
Applications for micro-diameter conduits: The SPR-PVC is highly versatile making it ideal for protecting sensor wires, and tiny fibre-optic cables in and around packaging machinery, cobot assisted manufacturing, conveyors, robotics, automation equipment, OEM sensor cables, and wire harnessing. Suitable for both indoor and outdoor use.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$552.20 | US$552.20 |
| 2 | US$524.59 | US$1,049.18 |
| 5 | US$496.98 | US$2,484.90 |
| 10+ | US$469.37 | US$4,693.70+ |
Unit Cost : US$
Extended Cost : US$552.2
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | SPR-PVC |
| Part Number | 12010102006 |
| Part Number (Old) | 2010.102.006 |
| Colour | Black |
| OD Outside Diameter (mm) | 9 |
| ID Inside Diameter (mm) | 6 |
| Static Bend Radius (mm) | 24 |
| Dynamic Bend Radius (mm) | 60 |
| Weight (kg|m) | 0.07 |
| Material | Galvanized Steel | Jacket: PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113129468 |
Data Sheet
Properties
- very flexible
- stretch resistant
- watertight
- widely resistant to solvents and chemicals
- free of silicone and cadmium
Applications
- automation
- sensor technology
- fiber optic technology
- technical endoscopy
Certifications
