Flexa FLEXAgraff-VA 1080.801.004 / 11080801004

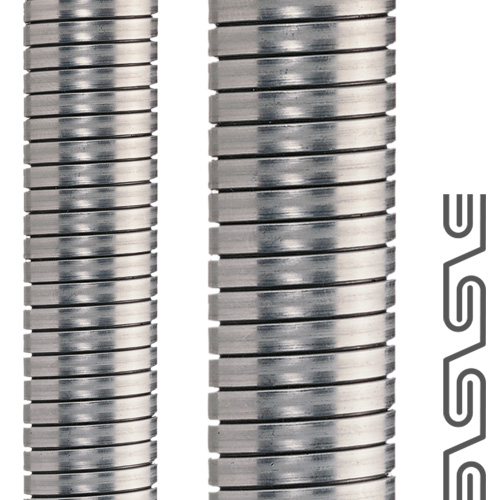

The Flexa FLEXAgraff-VA 11080801004 (Old Part Number 1080.801.004) is described as a 4.0 x 6.0 mm small diameter bend-limiting stainless-steel conduit with a rugged interlocked construction for protecting fine wires, cables, and fiber optic sensor bundles.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,416.08 | US$1,416.08 |
| 2 | US$1,345.28 | US$2,690.55 |
| 5 | US$1,274.47 | US$6,372.36 |
| 10+ | US$1,203.67 | US$12,036.68+ |
Unit Cost : US$
Extended Cost : US$1416.08
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | FLEXAgraff-VA |
| Part Number | 11080801004 |
| Part Number (Old) | 1080.801.004 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 6 |
| ID Inside Diameter (mm) | 4 |
| Static Bend Radius (mm) | 40 |
| Dynamic Bend Radius (mm) | 100 |
| Weight (kg|m) | 0.055 |
| Material | Stainless Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -200 |
| High Temperature Rating (°C) | 600 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113177827 |
Data Sheet
Properties
- very flexible
- stretch resistant
- low flammability
- widely resistant to solvents and chemicals
Applications
- automation
- sensor technology
- fiber optic technology
- optoelectronics
- machinery and equipment
