0131.801.007 / 10131801007 Flexa FDW-VA 7.0 x 8.2 mm stainless steel helix small diameter conduit for wire, cable, fiber optics protection

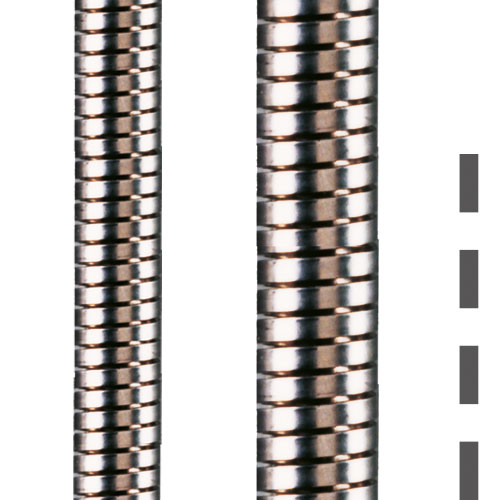

The Flexa FDW-VA 10131801007 (Old Part Number 0131.801.007) is a 7.0 x 8.2 mm stainless-steel mono-coil helix conduit for wire, cable, and fiber optic sensor bundle protection.
Features an extra wide operating temperature range of: -200ºC to +600ºC.
Applications for FDW-VA micro-diameter helix conduits:
Ideally suited for use in OEM cabling and wire harnessing applications. Use it “as is” or apply your own protective jacket of silicone, PVC or polyurethane.
Sensor fibre optics, cables, machine lighting, laser cutting fibre optic bundles, robot arm wire harnessing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$995.30 | US$995.30 |
| 2 | US$945.54 | US$1,891.07 |
| 5 | US$895.77 | US$4,478.85 |
| 10+ | US$846.01 | US$8,460.05+ |
Unit Cost : US$
Extended Cost : US$995.3
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | FDW-VA |
| Part Number | 10131801007 |
| Part Number (Old) | 0131.801.007 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 8.2 |
| ID Inside Diameter (mm) | 7 |
| Static Bend Radius (mm) | 45 |
| Dynamic Bend Radius (mm) | 110 |
| Weight (kg|m) | 0.088 |
| Material | Stainless Steel |
| Low Temperature Rating (°C) | -200 |
| High Temperature Rating (°C) | 600 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113305336 |
Data Sheet
Properties
- flexible
- stretch resistant
- low flammability
- widely resistant to solvents and chemicals
- UV resistant
Applications
- automation
- sensor technology
- medical technology
- machinery and equipment
- sensor fiber optic cables
- machine lighting fiber optics
- laser cutting fiber optic cables
- small wire & cable protection
Certifications
