0239.202.014 / 10239202014 Flexa HG-PA Black Polyamide 6.6 Tubular Braiding, NW 10, Range 7 – 14 mm

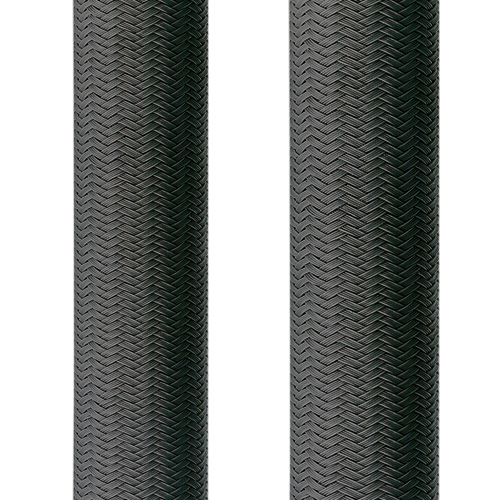

The Flexa HG-PA 10239202014 (Old Part Number 0239.202.014) is a nominal ID 10.0 mm axially compressible, tubular plastic wire braiding consisting of cross woven round Black polyamide PA6.6 monofiles. Over 85% coverage.
Mass transit, railway, bus, tram, subway certified EN 45545-2 (R23;HL3).
Excellent for wire & cable bundling with anti-abrasion & flame-resistant properties.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$275.04 | US$275.04 |
| 2 | US$261.29 | US$522.58 |
| 5 | US$247.54 | US$1,237.68 |
| 10 | US$233.78 | US$2,337.84 |
| 15 | US$220.03 | US$3,300.48 |
| 20+ | US$206.28 | US$4,125.60+ |
Unit Cost : US$
Extended Cost : US$275.04
Specifications
| Package Size | 100m (328 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | HG-PA |
| Part Number | 10239202014 |
| Part Number (Old) | 0239.202.014 |
| Colour | Black |
| Weight (kg|m) | 0.014 |
| Material | PA6.6 Plastic |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 120 |
| Extended Temperature (°C) | 150 |
| NW ID | 10 |
| ID Min | Max | 7.0 – 14.0 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 39173200 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113186973 |
Data Sheet
Properties
- V2 according to UL 94
axially pushed together, the braiding nearly doubles in diameter
- easy pulling in of cables
the braiding tightens by stretching
- oil and benzine resistant
- widely resistant to solvents and acids
- free of halogen
- self-extinguishing and flame-resistant
Applications
- Cable Bundling
- Machine and Plant Construction
- Automotive & Robots
- Railway & Bus Industry
- Shipbuilding
- Automation & Cobots
- Electrical Installations
Certifications
