4050.101.013 / 14050101013 Flexa HG-EDU Galvanized Steel Tubular Braiding, NW 10, Range 8 – 17 mm

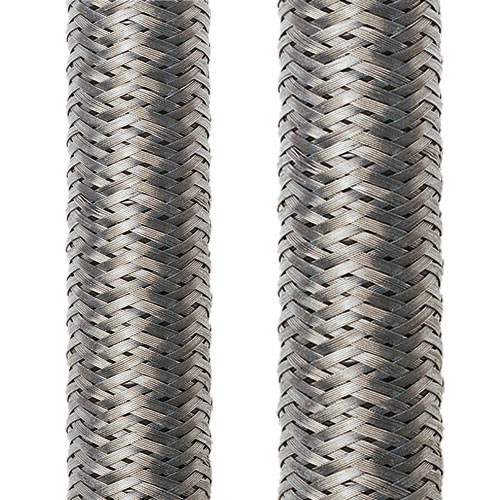

The Flexa HG-EDU 14050101013 (Old Part Number 4050.101.013) is a nominal ID 10.0 mm axially compressible, tubular wire braiding consisting of round galvanized steel wires crosshatch woven at angles. Coverage is over 85%.
Excellent grounding, EMC shielding, and anti-abrasion properties.
Applications include: printing machines, packaging processes, hot swarf protection for cutting machines, furnace control wiring, HVAC systems, and many more.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$418.56 | US$418.56 |
| 2 | US$397.63 | US$795.26 |
| 5 | US$376.70 | US$1,883.52 |
| 10 | US$355.78 | US$3,557.76 |
| 15 | US$334.85 | US$5,022.72 |
| 20+ | US$313.92 | US$6,278.40+ |
Unit Cost : US$
Extended Cost : US$418.56
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | HG-EDU |
| Part Number | 14050101013 |
| Part Number (Old) | 4050.101.013 |
| Colour | Silver |
| Weight (kg|m) | 0.084 |
| Material | Galvanized Steel |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
| Extended Temperature (°C) | 250+ |
| NW ID | 10 |
| ID Min | Max | 8 – 17.0 |
| Customs Tariff Number | 83079000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113140494 |
Data Sheet
Properties
- axially pushed together, the braiding nearly doubles in diameter
- easy pulling in of cables
- the braiding tightens by stretching
- protection from hot swarfs
Applications
- Cable Bundling
- Machine and Plant Construction
- Injection Moulding Machines
- Metal Cutting Machines
- Automotive & Robotics
- Shipbuilding
- Automation & Cobots
Servo motor noise protection
Certifications
