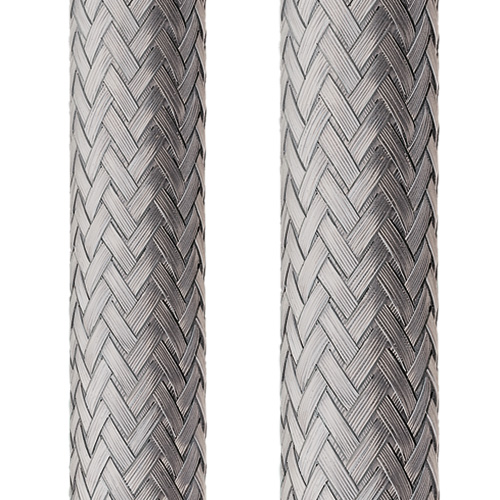

The Flexa HG-CU 14050701025 (Old Part Number 4050.701.025) is described as a nominal ID 20.0 mm tubular wire braiding consisting of round tinned-copper wires cross woven with a coverage of over 85%. Excellent grounding, EMC shielding, and anti-abrasion properties.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$1,407.12 US$1,407.12
2 US$1,336.76 US$2,673.53
5 US$1,266.41 US$6,332.04
10 US$1,196.05 US$11,960.52
15 US$1,125.70 US$16,885.44
20+ US$1,055.34 US$21,106.80+
Unit Cost : US$
Extended Cost : US$1407.12
Add to Quote

Specifications

Product Type

Special Protective Conduit

Brand

Flexa

Family

HG-CU

Part Number

14050701025

Part Number (Old)

4050.701.025

Colour

Silver

Weight (kg|m)

0.19

Package Size

50m Per Roll

Material

Tinned CU

Low Temperature Rating (°C)

-50

High Temperature Rating (°C)

250

Extended Temperature (°C)

250+

NW ID

20

ID Min | Max

16 – 27.0

Data Sheet

Properties

  • axially pushed together, in a certain proportion, depending on the construction of the braiding up to the double diameter
  • easy pulling in of cables
  • the braiding becomes tight by stretching
  • protection from hot swarfs
  • high shielding factor
  • screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB

Applications

  • Cable Bundling
  • Machine and Plant Construction
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
  • EMC Applications
