4051.701.017 / 14051701017 Flexa HG-CU-K Tinned Copper Tubular Braiding, NW 15, 12 – 22 mm range, inner soft-PVC conduit

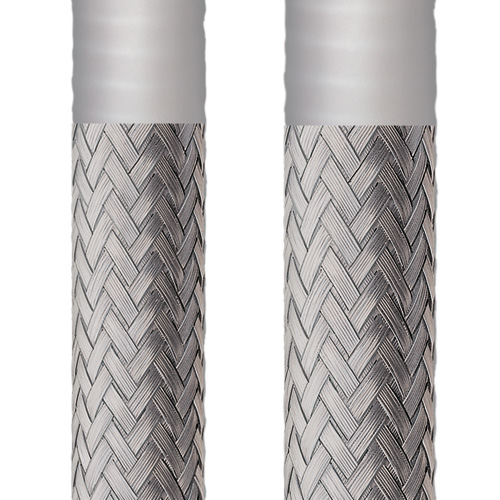

The Flexa HG-CU-K 14051701017 (Old Part Number 4051.701.017) is a nominal ID 15.0 mm tubular tinned-copper wire braid with an inner soft-PVC conduit.
The double crossover braiding weave provides a coverage of over 85%.
Excellent grounding, EMI & RFI shielding protection, anti-abrasion properties and basic moisture protection.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,882.74 | US$1,882.74 |
| 2 | US$1,788.60 | US$3,577.21 |
| 5 | US$1,694.47 | US$8,472.33 |
| 10 | US$1,600.33 | US$16,003.29 |
| 15 | US$1,506.19 | US$22,592.88 |
| 20+ | US$1,412.06 | US$28,241.10+ |
Unit Cost : US$
Extended Cost : US$1882.74
Specifications
| Package Size | 100m (328 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | HG-CU-K |
| Part Number | 14051701017 |
| Part Number (Old) | 4051.701.017 |
| Colour | Silver |
| Weight (kg|m) | 0.178 |
| Material | PVC, Tinned CU |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
| Extended Temperature (°C) | 250+ |
| NW ID | 15 |
| ID Min | Max | 12 – 22.0 |
| Customs Tariff Number | 83079000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113211736 |
Data Sheet
Properties
axially pushed together, the braiding nearly doubles in diameter
- easy pulling in of cables – the PVC carrier hose can be used as an insertion tool
the braiding tightens by stretching
- protection from hot swarfs
- moisture & environmental protection
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications
- Cable Bundling
- Machine and Plant Construction
- Automotive & Robotics
- Railway Industry
- Shipbuilding
- Automation & Cobots
- Servo motor noise protection
- EMC Applications
Certifications
