4051.701.013 / 14051701013 Flexa HG-CU-K Tinned Copper Tubular Braiding, NW 10, 8 – 17 mm range, inner soft-PVC conduit

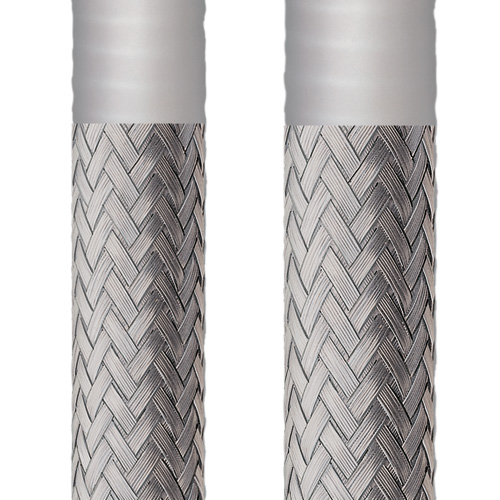

The Flexa HG-CU-K 14051701013 (Old Part Number 4051.701.013) is a nominal ID 10.0 mm tubular tinned-copper wire braid with an inner soft-PVC conduit.
The double crossover braiding weave provides a coverage of over 85%.
Excellent grounding, EMI & RFI shielding protection, anti-abrasion properties and basic moisture protection.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,526.48 | US$1,526.48 |
| 2 | US$1,450.16 | US$2,900.31 |
| 5 | US$1,373.83 | US$6,869.16 |
| 10 | US$1,297.51 | US$12,975.08 |
| 15 | US$1,221.18 | US$18,317.76 |
| 20+ | US$1,144.86 | US$22,897.20+ |
Unit Cost : US$
Extended Cost : US$1526.48
Specifications
| Package Size | 100m (328 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | HG-CU-K |
| Part Number | 14051701013 |
| Part Number (Old) | 4051.701.013 |
| Colour | Silver |
| Weight (kg|m) | 0.142 |
| Material | PVC, Tinned CU |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
| Extended Temperature (°C) | 250+ |
| NW ID | 10 |
| ID Min | Max | 8 – 17.0 |
| Customs Tariff Number | 83079000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113211729 |
Data Sheet
Properties
axially pushed together, the braiding nearly doubles in diameter
- easy pulling in of cables – the PVC carrier hose can be used as an insertion tool
the braiding tightens by stretching
- protection from hot swarfs
- moisture & environmental protection
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications
- Cable Bundling
- Machine and Plant Construction
- Automotive & Robotics
- Railway Industry
- Shipbuilding
- Automation & Cobots
- Servo motor noise protection
- EMC Applications
