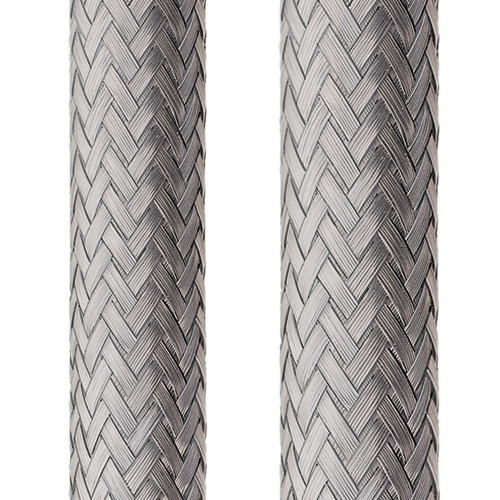

The Flexa HG-CU-F 14050702020 (Old Part Number 4050.702.020) is described as a nominal ID 20.0 mm tubular wire braiding consisting of fine round tinned-copper wires cross woven with a coverage of over 85%. Excellent grounding, EMC shielding, and anti-abrasion properties.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$2,859.34 US$2,859.34
2 US$2,716.37 US$5,432.75
5 US$2,573.41 US$12,867.03
10 US$2,430.44 US$24,304.39
15 US$2,287.47 US$34,312.08
20+ US$2,144.51 US$42,890.10+
Unit Cost : US$
Extended Cost : US$2859.34
Add to Quote

Specifications

Product Type

Special Protective Conduit

Brand

Flexa

Family

HG-CU-F

Part Number

14050702020

Part Number (Old)

4050.702.020

Colour

Silver

Weight (kg|m)

0.06

Package Size

100m Per Roll

Material

Tinned CU

Low Temperature Rating (°C)

-50

High Temperature Rating (°C)

250

Extended Temperature (°C)

250+

NW ID

20

ID Min | Max

15.0 – 30.0

Data Sheet

Properties

  • axially pushed together, in a certain proportion, depending on the construction of the braiding up to the double diameter
  • easy pulling in of cables
  • the braiding becomes tight by stretching
  • protection from hot swarfs
  • high shielding factor
  • screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB

Applications

  • Cable Bundling
  • Machine and Plant Construction
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
  • EMC Applications
