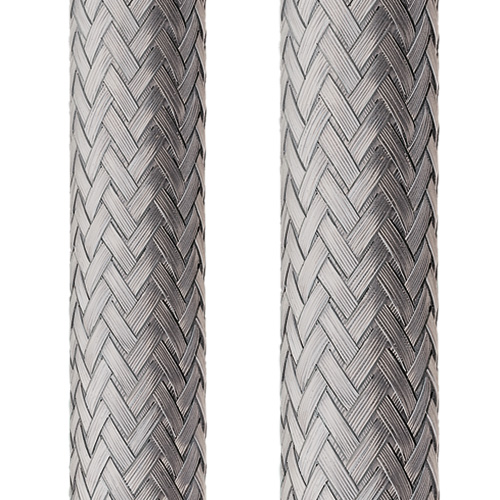

The Flexa HG-CU-F 14050702006 (Old Part Number 4050.702.006) is described as a nominal ID 6.0 mm tubular wire braiding consisting of fine round tinned-copper wires cross woven with a coverage of over 85%. Excellent grounding, EMC shielding, and anti-abrasion properties.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$1,037.56 US$1,037.56
2 US$985.68 US$1,971.36
5 US$933.80 US$4,669.02
10 US$881.93 US$8,819.26
15 US$830.05 US$12,450.72
20+ US$778.17 US$15,563.40+
Unit Cost : US$
Extended Cost : US$1037.56
Add to Quote

Specifications

Product Type

Special Protective Conduit

Brand

Flexa

Family

HG-CU-F

Part Number

14050702006

Part Number (Old)

4050.702.006

Colour

Silver

Weight (kg|m)

0.03

Package Size

100m Per Roll

Material

Tinned CU

Low Temperature Rating (°C)

-50

High Temperature Rating (°C)

250

Extended Temperature (°C)

250+

NW ID

6

ID Min | Max

6.0 – 12.0

Data Sheet

Properties

  • axially pushed together, in a certain proportion, depending on the construction of the braiding up to the double diameter
  • easy pulling in of cables
  • the braiding becomes tight by stretching
  • protection from hot swarfs
  • high shielding factor
  • screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB

Applications

  • Cable Bundling
  • Machine and Plant Construction
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
  • EMC Applications
