4050.702.004 / 14050702004 Flexa HG-CU Tinned Fine Copper Wire Tubular Braiding, NW 4, 4 – 8 mm range

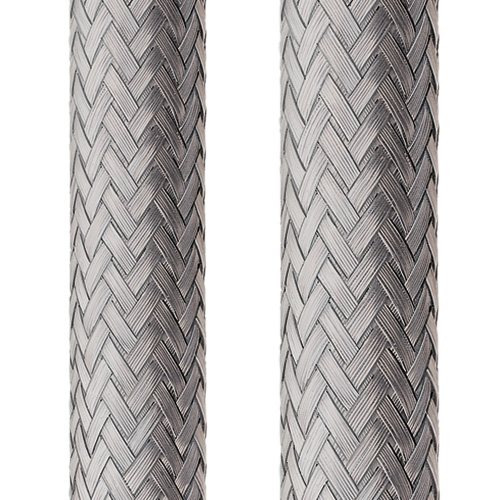

The Flexa HG-CU-F 14050702004 (Old Part Number 4050.702.004) is described as a nominal ID 4.0 mm tubular wire braiding consisting of fine round tinned-copper wires cross woven with a coverage of over 85%.
Braid tube opening range: 4 – 8 mm
Braid fine wire construction: 24 x 6 x 0.15
Shielding factor: up to 30 MHz, up to 80 dB
Applications:
The HG-CU-F tubular tinned fine copper wire braiding shields electrical noise sensitive wires, cable and equipment from potentially harmful external electromagnetic interference (EMI) and radio frequency interference (RFI).
The EMI & RFI shielding and emission blocking benefits makes these braids essential in industries, such as aerospace, healthcare, telecommunications, robotics, and industrial automation.
The fine copper wires used in the HG-CU-F braids provide greater tubular flexibility. This can be helpful when protecting small delicate wires, or with large fully loaded bundles.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$753.58 | US$753.58 |
| 2 | US$715.90 | US$1,431.80 |
| 5 | US$678.22 | US$3,391.11 |
| 10 | US$640.54 | US$6,405.43 |
| 15 | US$602.86 | US$9,042.96 |
| 20+ | US$565.19 | US$11,303.70+ |
Specifications
| Package Size | 100m (328 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | HG-CU-F |
| Part Number | 14050702004 |
| Part Number (Old) | 4050.702.004 |
| Colour | Silver |
| Weight (kg|m) | 0.02 |
| Material | Tinned CU |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 250 |
| Extended Temperature (°C) | 250+ |
| NW ID | 4 |
| ID Min | Max | 4.0 – 8.0 |
| Customs Tariff Number | 83079000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113307774 |
Data Sheet
Properties
- axially pushed together, the braiding nearly doubles in diameter
- easy pulling in of cables
- the braiding tightens by stretching
- protection from hot swarfs
- high shielding factor
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications
- Cable Bundling
- Machine and Plant Construction
- Automotive & Robotics
- Railway Industry
- Shipbuilding
- Automation & Cobots
- Electrical Installations
- EMC Applications
