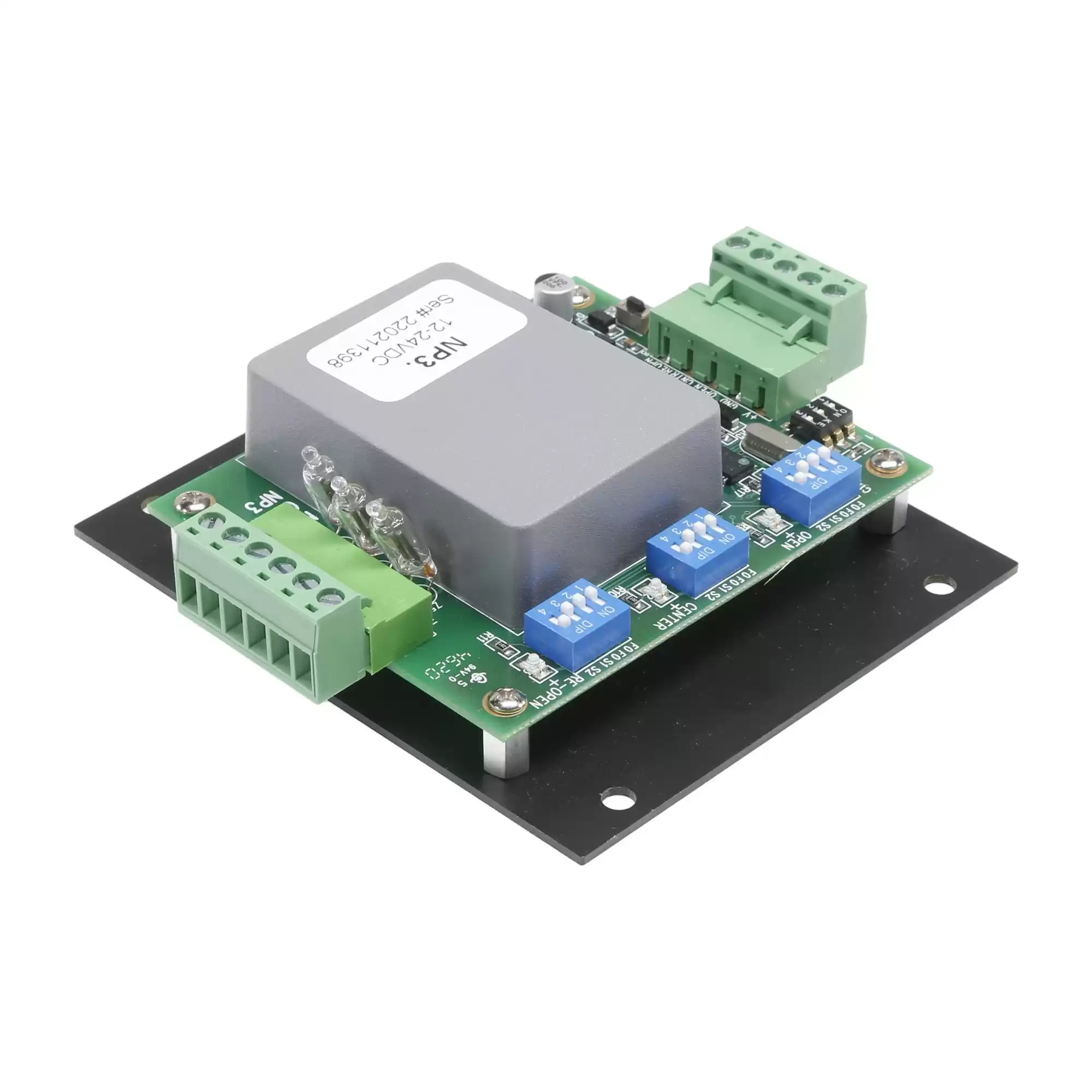

The Northstar Controls NP3 is a 10 to 30 volt DC three channel, single output “plug-in” vehicle loop detector for All-O-Matic and Viking gate operators.
It provides a single output for three independent loops without any cross talk. The NP3 can also be hardwired into any gate operator using the included plug connectors.
Installs via two snap-in strip connectors. Replace old or damaged detectors in seconds.
In Stock: 0
Factory Lead-Time: Can Ship in 3 – 5 days
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$204.94 | US$204.94+ |
Unit Cost : US$
Extended Cost : US$204.94
Specifications
| Product Type | Sensors |
|---|---|
| Brand | NorthStar Controls |
| Family | NorthStar Controls Loop Detectors |
| Part Number | NP3 |
| Housing Size | 40 / 90 / 90 mm |
| Housing Material | Plastic |
| Weight (g) | 250 |
| Connection | All-O-Matic/Viking Plug-in |
| IP Rating | IP40 |
| Operating Temperature Range | -35°F to 165°F / -37°C to 74°C |
| Number of Channels | 3 |
| Supply Voltage | +10 to 30 VDC |
| Output | 3 x Transistor 30 mA @ 30 Volts |
Data Sheet
Overview
- Full details coming soon
Certifications
