XLP-8 Diablo Controls Loop and Probe Vehicle Detector, ultra low power, solar ready, 8 – 30 Volts AC or DC, fail-safe mode, relay output

Product Name:
XLP-8 Diablo Controls Loop and Probe Vehicle Detector, ultra low power, solar ready, 8 – 30 Volts AC or DC, fail-safe mode, relay output

Mfr. Part # XLP-8 Categories , ,

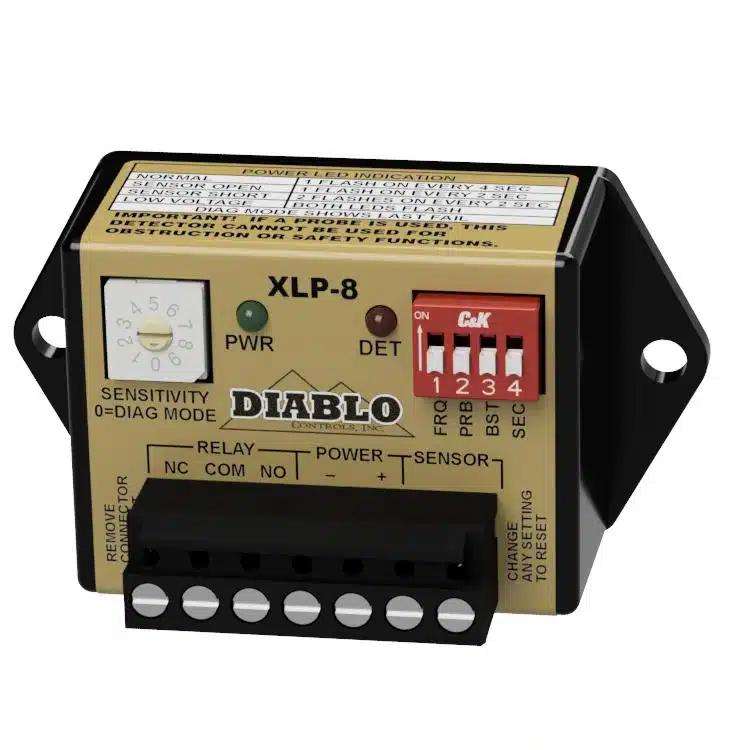

The Diablo Controls XLP-8 is a compact, user-friendly, single channel vehicle detector with an exceptionally low current draw, making it perfect for solar applications. It can utilize either a standard inductive loop or a magnetometer sensor like the Diablo Controls’ “Free-Exit Probe”.

At idle, with no vehicle on the loop, the XLP-8 draws less than 1 mA (milliamp) of current. The combination of low power consumption and micro-size make it a good choice for solar powered, and remote installations.

It’s easy to install using the plug-in style wiring terminal strip and configures quickly using a 4-position DIP switch. Operates on 8 – 30 Volts AC/DC.

NOTE: Loop detectors are not returnable or refundable after purchase. Please choose the model and voltage you need carefully!

In Stock: 0
Factory Lead-Time: Can ship in 2 – 3 days
Quantity Unit Price Ext. Price
1+ US$114.21 US$114.21+
Unit Cost : US$
Extended Cost : US$114.21
Add to Quote

Specifications

Product Type

Sensors
Brand

Diablo Controls
Family

Diablo Controls Loop Detectors
Part Number

XLP-8
Housing Size

39 / 74 / 40 mm
Housing Material

Plastic
Weight (g)

500
Connection

Terminal Strip
IP Rating

IP40
Operating Temperature Range

-35°F to 165°F / -37°C to 74°C
Number of Channels

1
Supply Voltage

+8 to 30 VAC or VDC
Output

Relay 1A @ 125 Volts

Data Sheet

Certifications
